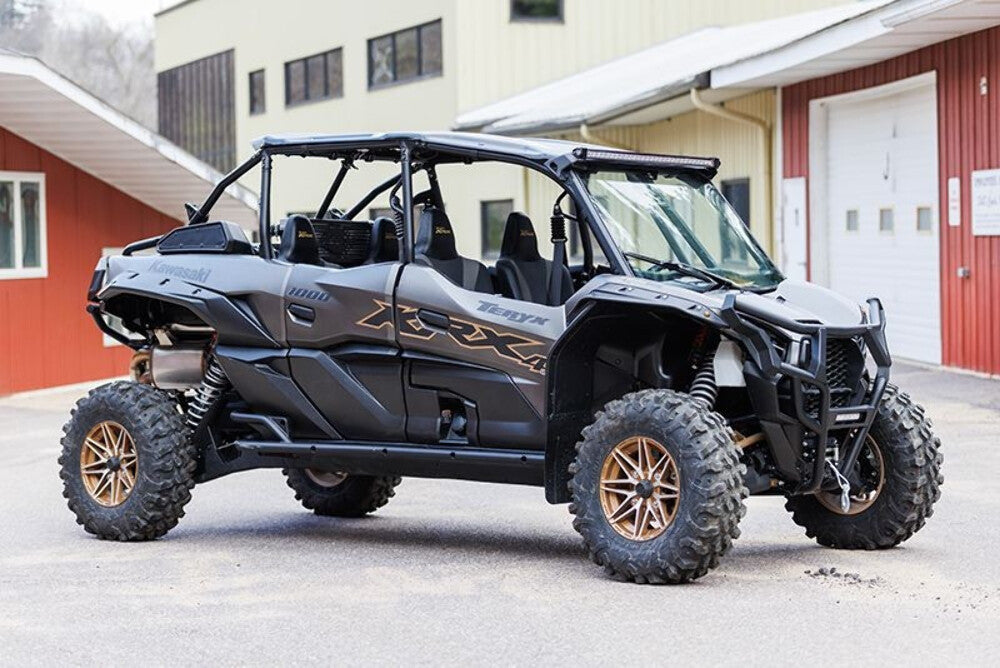

560-0340 | Turbocharger Kit for 2020-'23 KRX Models (Fits Four Seater Only)
Pickup currently unavailable
S&S Cycle 560-0340
The S&S Off Road Division KRX Turbo Kit is now available for the 4 seater! How does a 50% gain in Horsepower and a 0-60 time that drops from the factory 11.5 seconds to a much more fun 6.2 seconds sound? Our kit includes a massive fan cooled air to air intercooler (others do not) as well as 9:1 compression pistons that allow for 10 psi of boost (double of any competitors kits) and a pre-loaded PV3 tuner. To top it off, our kit also includes a tuned plenum (the factory unit can’t handle boost), larger injectors, fuel rail, and even correct temp plugs, all in a factory-style package with hundreds of hours of durability testing behind it.
- 50%+ increase in horsepower over factory
- 0-60 in 7s vs. 11.5s stock
- Tuned for 10 psi of boost
- 9:1 compression ratio, forged piston kit (OEM 11.5:1)
- Fits two seater only
- Full size aluminum intercooler
- All stainless steel air tubes with silicone couplers
- Blow-off valve and 3 Bar map sensor included
- Includes PV3 tuning device
- Custom Rotomolded Intake Plenum
- High Capacity billet fuel rail with fuel damper
- 900 cc/min injectors
- Includes ALL mounting hardware and brackets
- Kit can be used with Kawasaki Sport roof, Kawasaki Alternator Kit and Kawasaki Spare tire rack

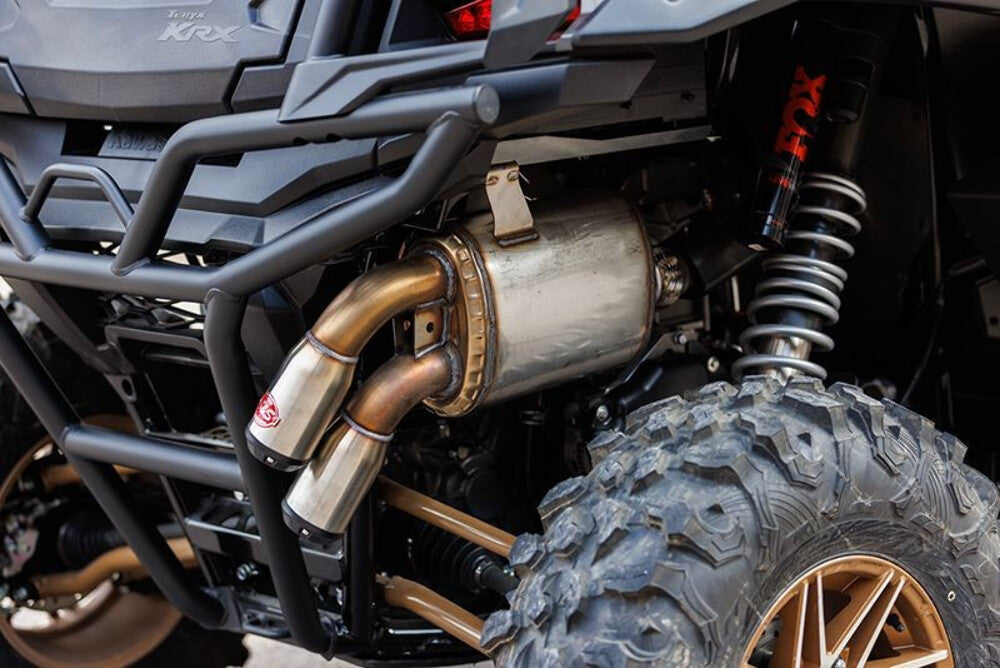

- XTO muffler with 2.25” outlets
- Flyweight rivets, compatible with stock flyweights
- Breather relocation bracket
- KQR™ Sport Roof mount relocation bracket
- All necessary fasteners, gaskets, and hardware
- “Turbo” Decals
- Install instructions
- Turbo, set to 10 psi of boost pressure
- Forged, low compression pistons
- Camshaft sprockets
- Heat range 10 spark plugs
- Intercooler with dual cooling fans
- Intercooler fan electrical harness
- High flow fuel injectors, 900 cc/min
- High flow fuel filter
- Large volume billet aluminum fuel rail
- Rotomolded high pressure intake air plenum
- 2” stainless steel charge air tubes
- Silicone 4 ply couplers
- Billet aluminum blow off valve
- Turbo oil supply and drain tubes, with oil fill adaptor
- 2.5” stainless steel exhaust with flex bellows and v-band connection
