Arlen Ness 18-342

The new Big Sucker™ Stage 1 performance intake for Milwaukee-Eight® (M8) engines adds new features to the original industry leading air cleaner. The new patent-pending hidden breather system is o-ringed at the heads, passes through the backing plate and exits inside the mouth of the throttle body through proprietary shooter tubes

• Knuckle Stage 1 Cover
• Increases Horsepower & Torque
• Eliminates Oil Blow-bye Issues Associated with M8 Engines
• Black Pre-Oiled High Performance Filter
• Patent-Pending Hidden Breather Technology
• Patent-Pending Oil Catch / Reservoir
• One-Piece Aluminum Backing Plate
• Aluminum Filter Top Plate

 Aluminum Backing Plate For Milwaukee-Eight™ (M8) Engines

• New patent-pending hidden breather backing plate technology. Each breather is o-ringed at the heads, passes through the backing plate and exits inside the mouth of the throttle body through specially formed shooter tubes
• Shooter tubes are specially formed to flow with the radius air inlet to provide efficient engine breathing without adversely effecting airflow
• Helps to eliminate oil blow-bye  issues associated with performance intakes on M8 engines
• Integrated patent-pending oil catch stops any excess breather oil from reaching the air filter. Oil catch is serviceable, simply bolt-on and off when your ready to wash/service the air filter
• Formed aluminum filter plate design with integrated mounting studs eliminates any internal mounting hardware
• Outer filter lip covers the urethane on the base of the air filter for a clean look that leaves only filter media exposed
• Gloss Black Powdercoat Finish

Performance Air Filters: Milwaukee-Eight (M8) Engines

• Black pre-oiled cotton performance air filter
• Engineered for optimum air flow and filtration
• Perimeter flow design brings in air from all sides of the filter while filtering out all harmful debris/dust
• Each filter is washable and re-useable, filter service kits are available

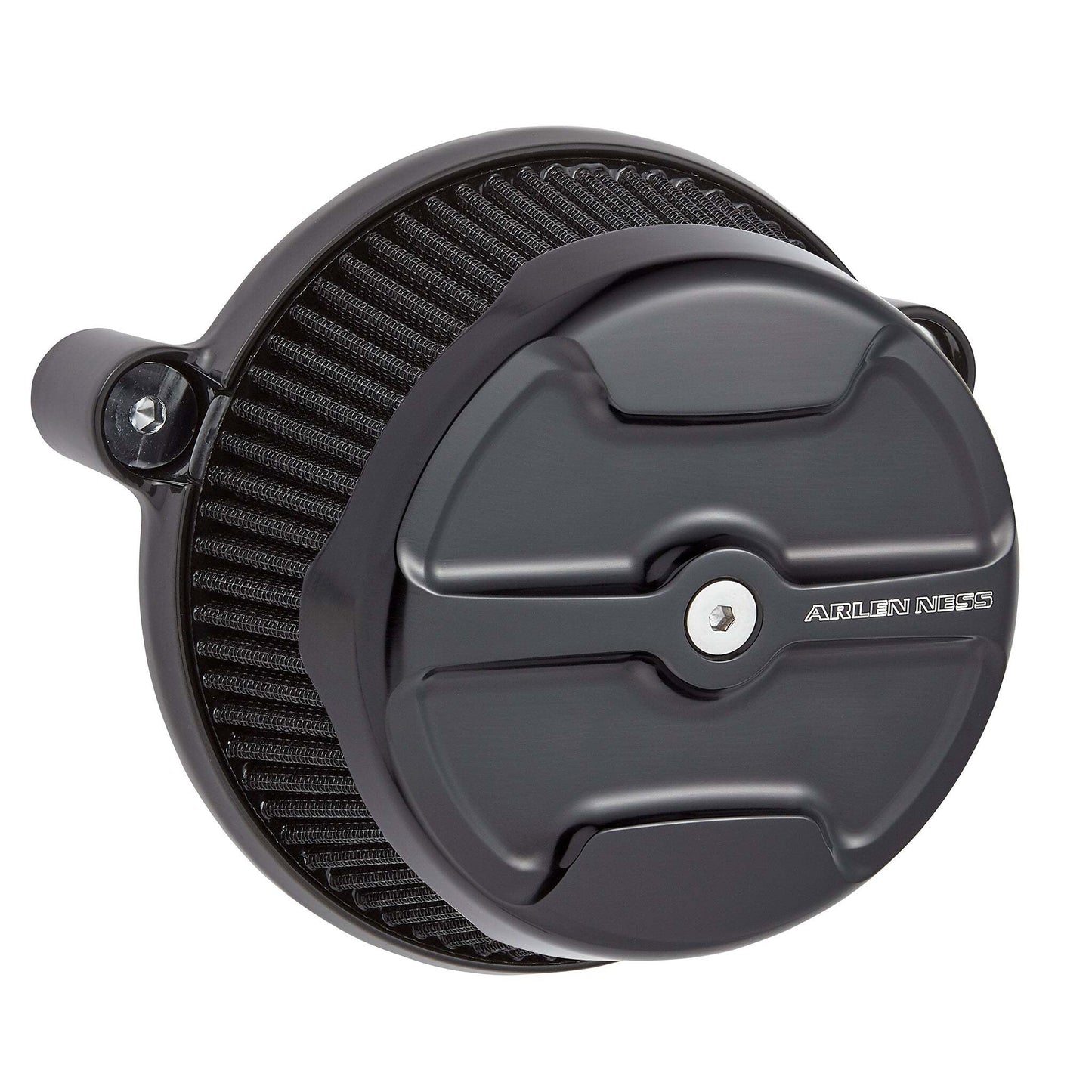

Knuckle Stage 1 Outer Cover

• The Stage 1 Knuckle air cleaner cover features  sculpted 3D billet machining that was designed to flow with the style of the M8 engine
• CNC machined from forged billet aluminum
• Black anodize finish

M8

Backing Plate Assembly: 18-394B

Backing Plate, Filter Top Plate, Stainless Hardware ¼-20 x 1-½ (2)

Breather & Oil Catch

Oil Catch: 18-392-3

Oil Catch Gasket: 18-392-3

Oil Catch Hardware, 8-32 x ¾: H-619S (2)

Shooter Tubes: BT-001

Hardware Kit: HK-18458

Breather Bolts: 18-457-4C (2)

Throttle Body Gasket: 18-457-3

Breather Bolt O-Rings: H-024-4 (4)

Throttle Body Logo Plate: 18-203-8

Logo Plate Hardware, M6 x 1.0: HM-122B (2)

Knuckle Air Cleaner Cover, Black: 18-769

Cover Hardware, 5/16-18 x 5/8: H-525C

Pre-Oiled Air Filter, Black: 18-090

17-2023 M8 MODELS (EXCEPT: 2023 FLHXSE & FLTRXSE)

•  2017-up FLT Touring / Bagger Models: FLHT / FLHR / FLHX / FLTRX / FLTRU / H-D FL Trike
• 2018-up Softail™ Models
