Arlen Ness 50-339

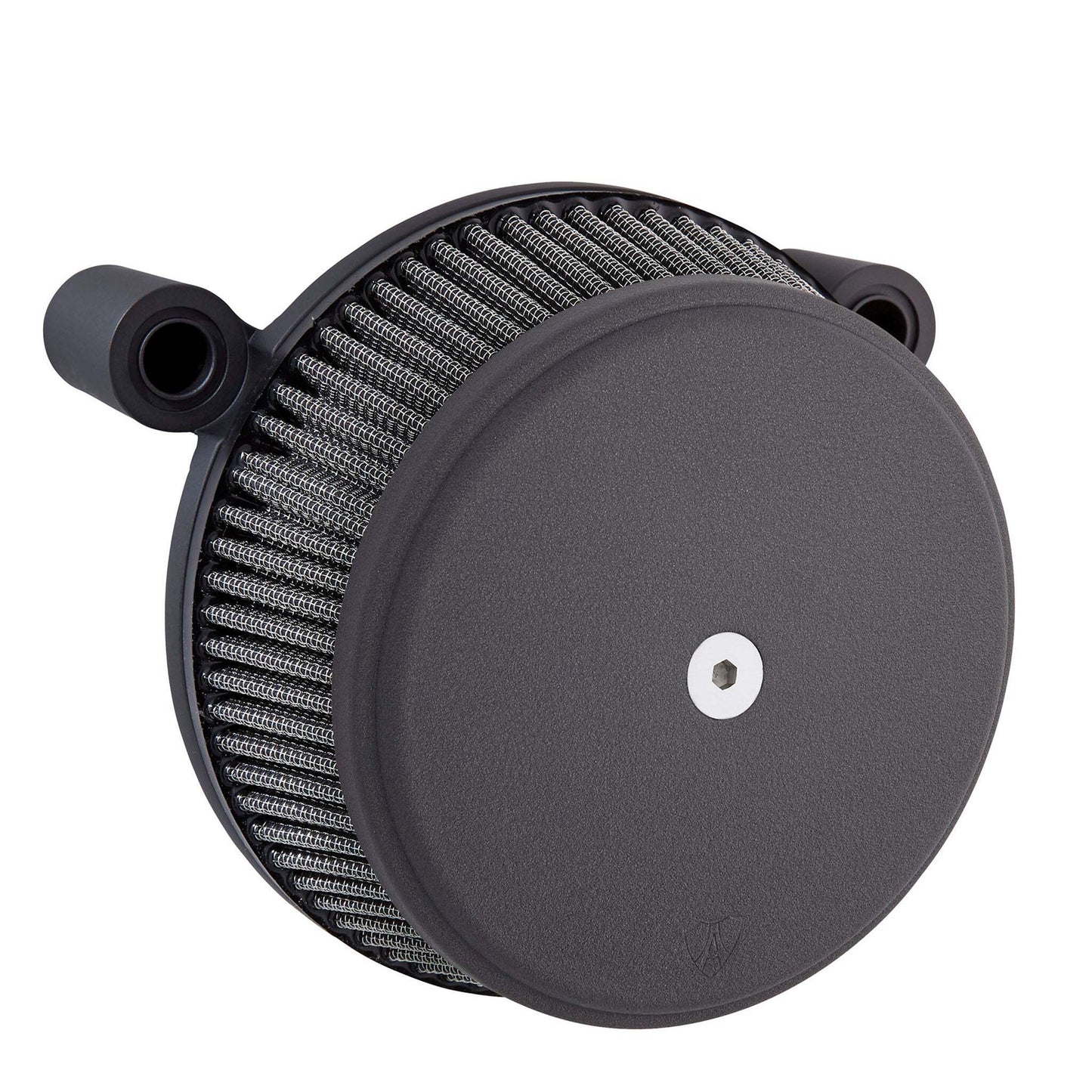

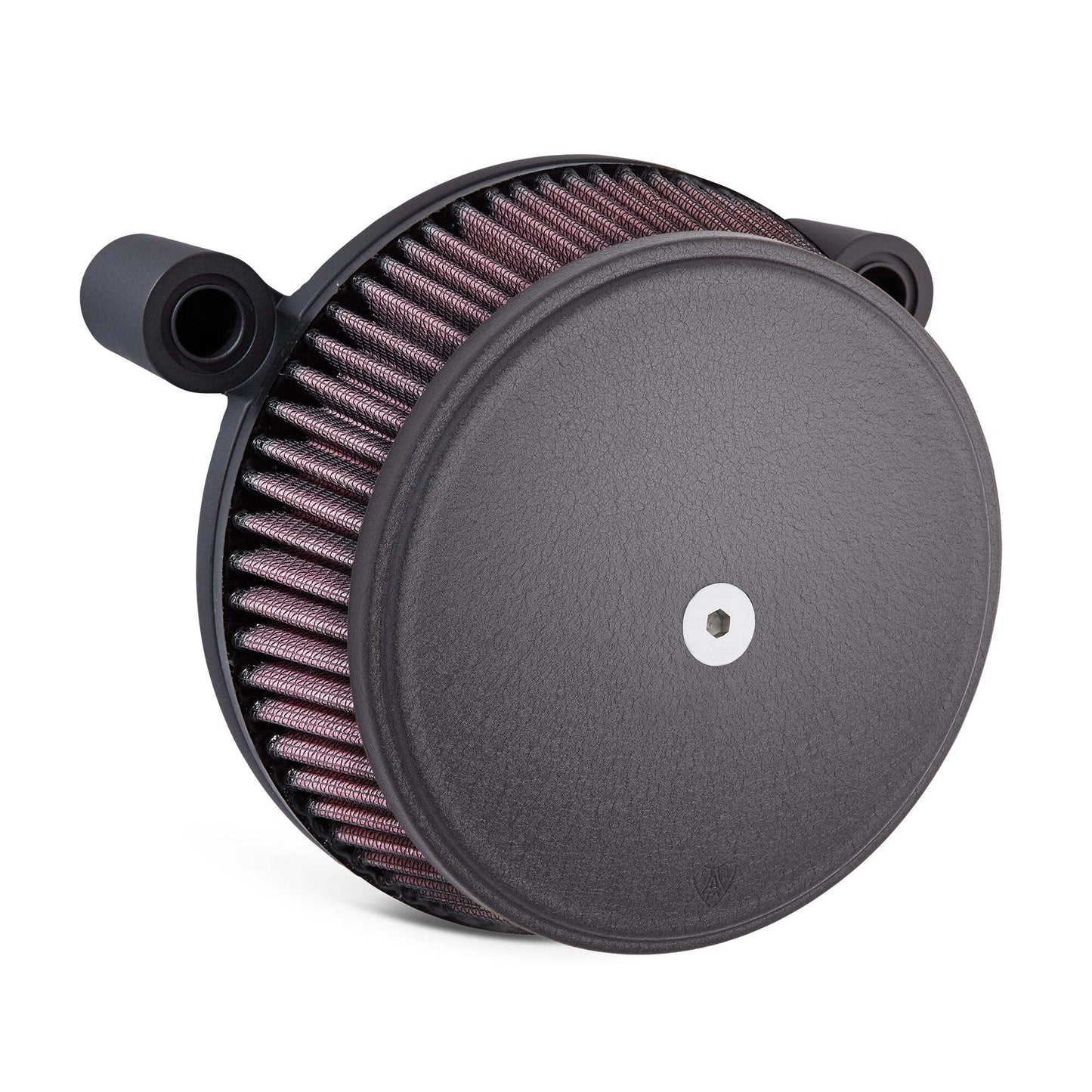

Big Sucker™ Stage 1 air cleaners are engineered and proven to give your engine maximum airflow for more horsepower & torque. The patented hidden breather backing plate is o-ringed at the heads and exits inside the mouth of the throttle body for a virtually closed loop system, eliminating the need for any external hoses or hardware

• Smooth Stage 1 Air Cleaner Cover
• Increases Horsepower & Torque
• Patented Hidden Breather Technology
• Pre-Oiled & Synthetic High Performance Filters
• One-Piece Aluminum Backing Plate
• Radius Air Inlet for Unobstructed Airflow

Aluminum Backing Plate Features: Twin Cam/Sportster/Evolution Engines

• One-piece aluminum backing plate
• Features our patented hidden breather technology, each breather is o-ringed at the heads and exits at the mouth of the throttle body. This creates a virtually closed look system which eliminates the need for any external hoses or hardware
• Smooth radius air inlet engineered to provide unobstructed airflow directly into the engine
• Available finishes: Standard Raw / Chrome / Matte Black Powdercoat

Smooth Stage 1 Air Cleaner Cover

• Smooth Stage 1 cover features a clean universal design stamped with the Arlen Ness logo
• Made from high quality steel
• Finished in wrinkle black powdercoat

Performance Air Filters: Twin Cam/Sportster/Evolution Engines

• Each Big Sucker® performance filter is handmade in the USA
• Available in red pre-oiled cotton or synthetic filter media
• Standard red pre-oiled cotton performance filters are made from 4 layers of surgical grade cotton for optimum flow & filtration
• Synthetics performance filters are made from a black synthetic filter element that is wrapped in a stainless steel jacket. Synthetic filters are water resistant and do not require oil
• All Stage 1 air filters are washable/re-usable, filter tune-up kits are available separately

 Twin Cam / Sportster / Evolution

Black Backing Plate (Fitment Specific)

08-16 Touring / 16-17 Softails: 18-590

99-17 Twin Cam (Exc. FBW & 01 FI): 18-591

99-01 Fuel Injected (FI) FLT: 18-593

93-99 Evolution: 18-592

88-up XL Sportster: 18-594

Hardware Kit (Fitment Specific)

 08-16 Touring /16-17 Softails: 18-530

99-17 Twin Cam (Exc. FBW & 01 FI): 18-531

99-01 Fuel Injected (FI) FLT: 18-533

93-99 Evolution: 18-532

88-up XL Sportster: 18-534

Air Filter, Red Pre-Oiled

08-16 Touring / 16-17 Softails (FBW): 18-080

99-17 Twin Cam/88-up XL/93-99 Evo: 18-098

99-01 Fuel Injected (FI) FLT: 18-097

Air Filter, Synthetic

08-16 Touring /  16-17 Softail (FBW) : 50-083

99-17 Twin Cam/88-up XL/93-99 Evo: 50-084

99-01 Fuel Injected (FI) FLT: 50-087

Smooth Air Cleaner Cover, Black: 18-761

Cover Hardware, 5/16-18 x 5/8: H-525C

99-17 Twin Cam (Except: FBW)

• 2001-2017 Twin Cam Delphi EFI (Fuel Injected)
• 1999-2006 Twin Cam CV Carb
• *NOTE: Will not fit Fly-By-Wire Models: 08-17 FLT Touring  / 16-17 Softail / 16-17 Dyna FXDLS & 99-01 F.I. FLT

 08-16 Touring / 16-17 Softail  (FBW)

• 2008-2016 FLT Touring / Bagger - FLHT / FLHR / FLHX / FLTR / H-D FL Trike
• 2016-2017 Softails
• 2016-2017 Dyna FXDLS
• 2014-2015 FLSTNSE / 13-14 FXSBSE / 11-12 FLSTSE
• *NOTE: Twin Cam models equipped w/ FBW (Fly-by-Wire or Throttle-by-Wire)

 91-up XL Sportster

• 1991-up Sportster 883 / 1200  with CV Carb or Delphi EFI

 99-01 Fuel Injected FLT

• 1999-2001 FLT Touring Models- FLHTI / FLHRI

 93-99 Evo

FITMENT DISCLAIMER

Fitment information is provided as a general reference only and is not guaranteed for any motorcycle, whether stock or modified. Compatibility may vary by year, model, and individual configuration.

Customers are responsible for verifying fitment prior to purchase. House of Harley-Davidson assumes no liability for purchases made based on incorrect or unverified fitment information.

Please contact our Parts Department with any questions before ordering at 414-282-2211
