Arlen Ness 120-023

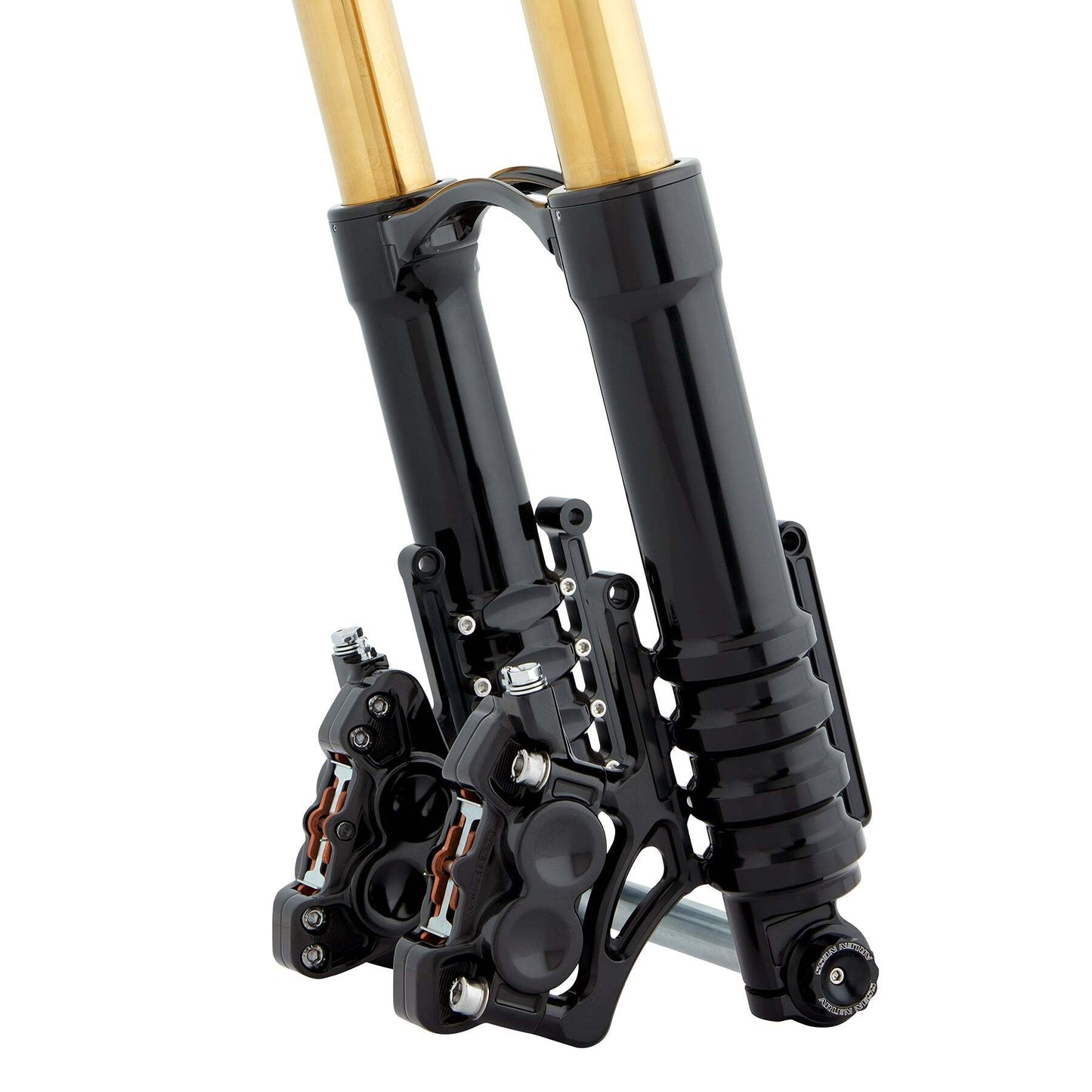

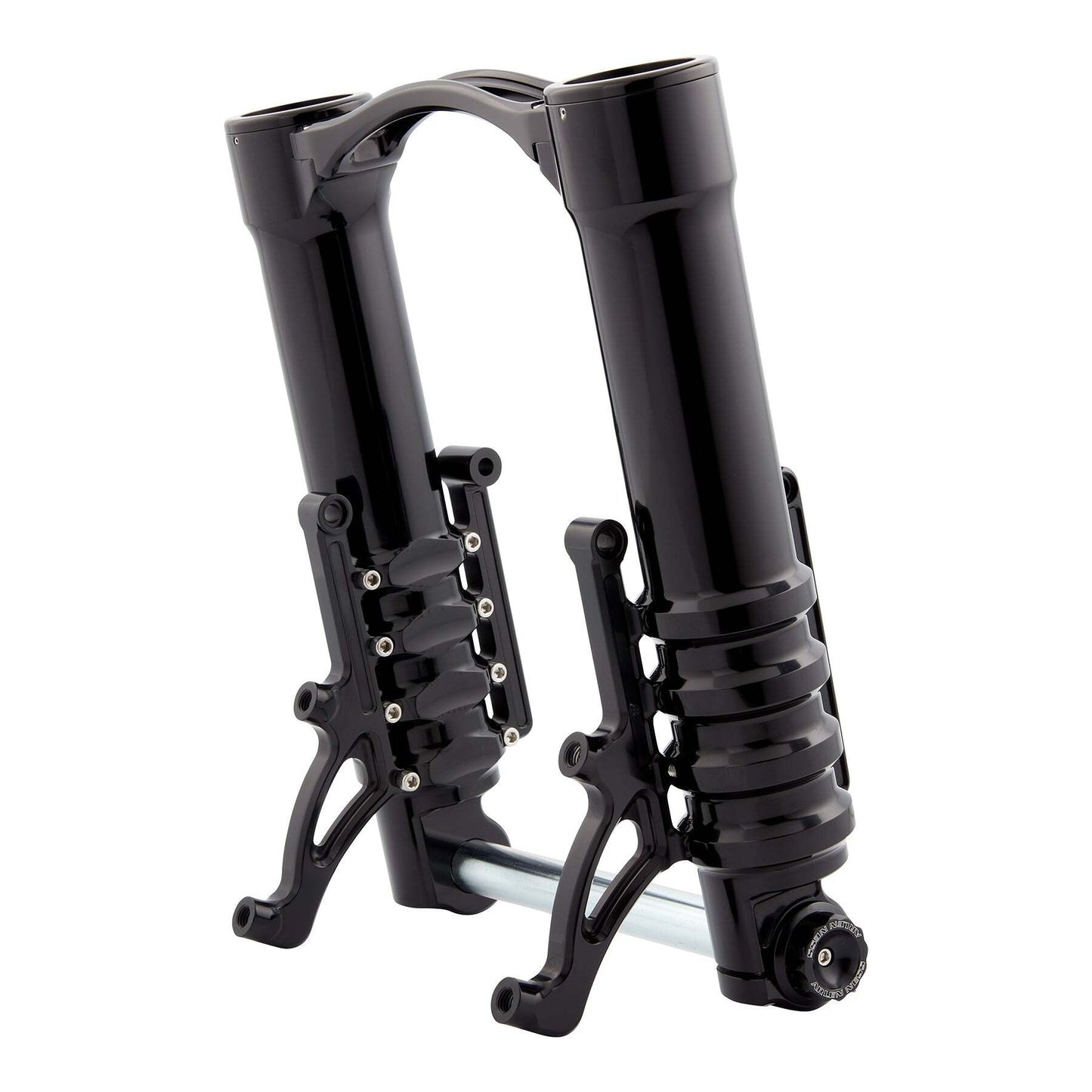

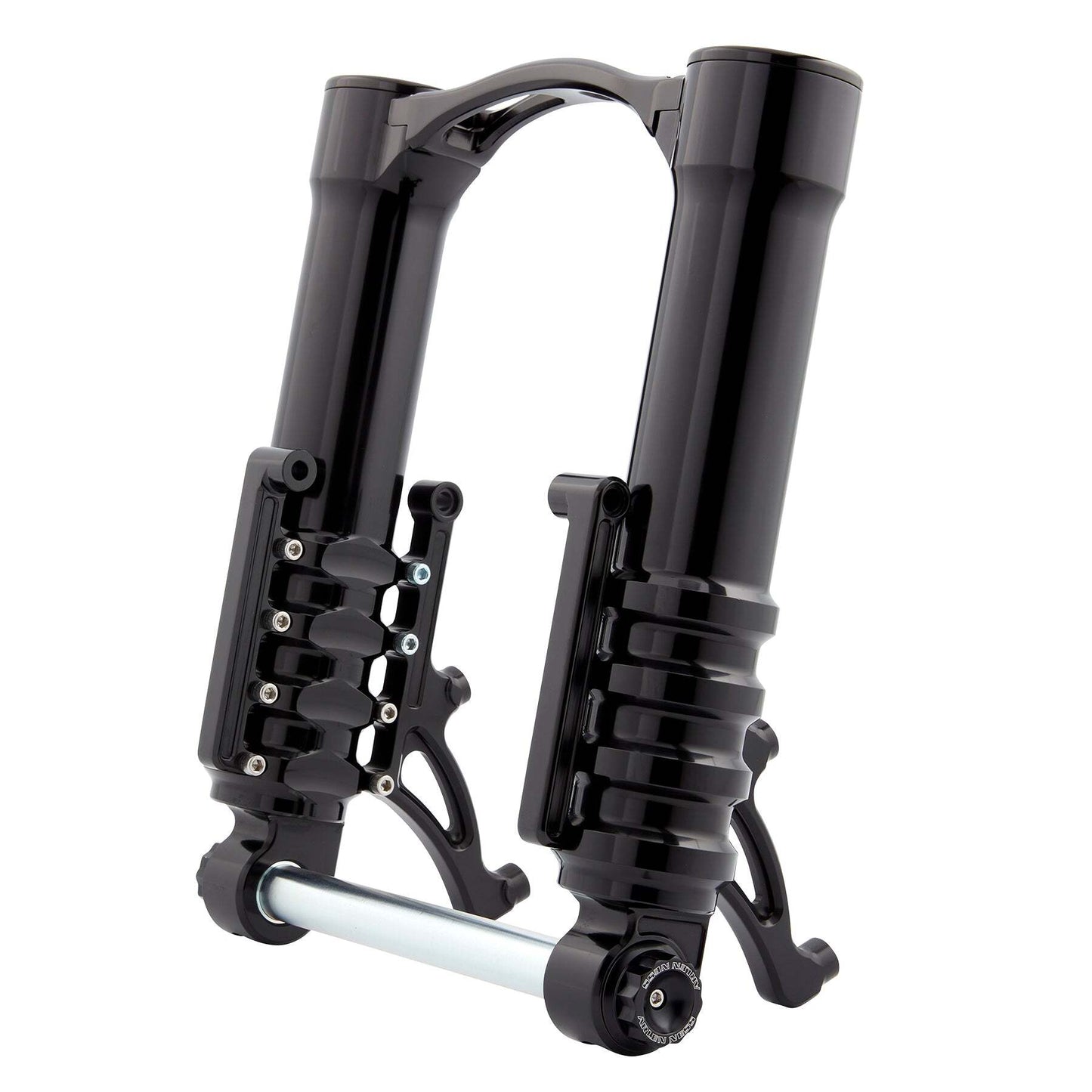

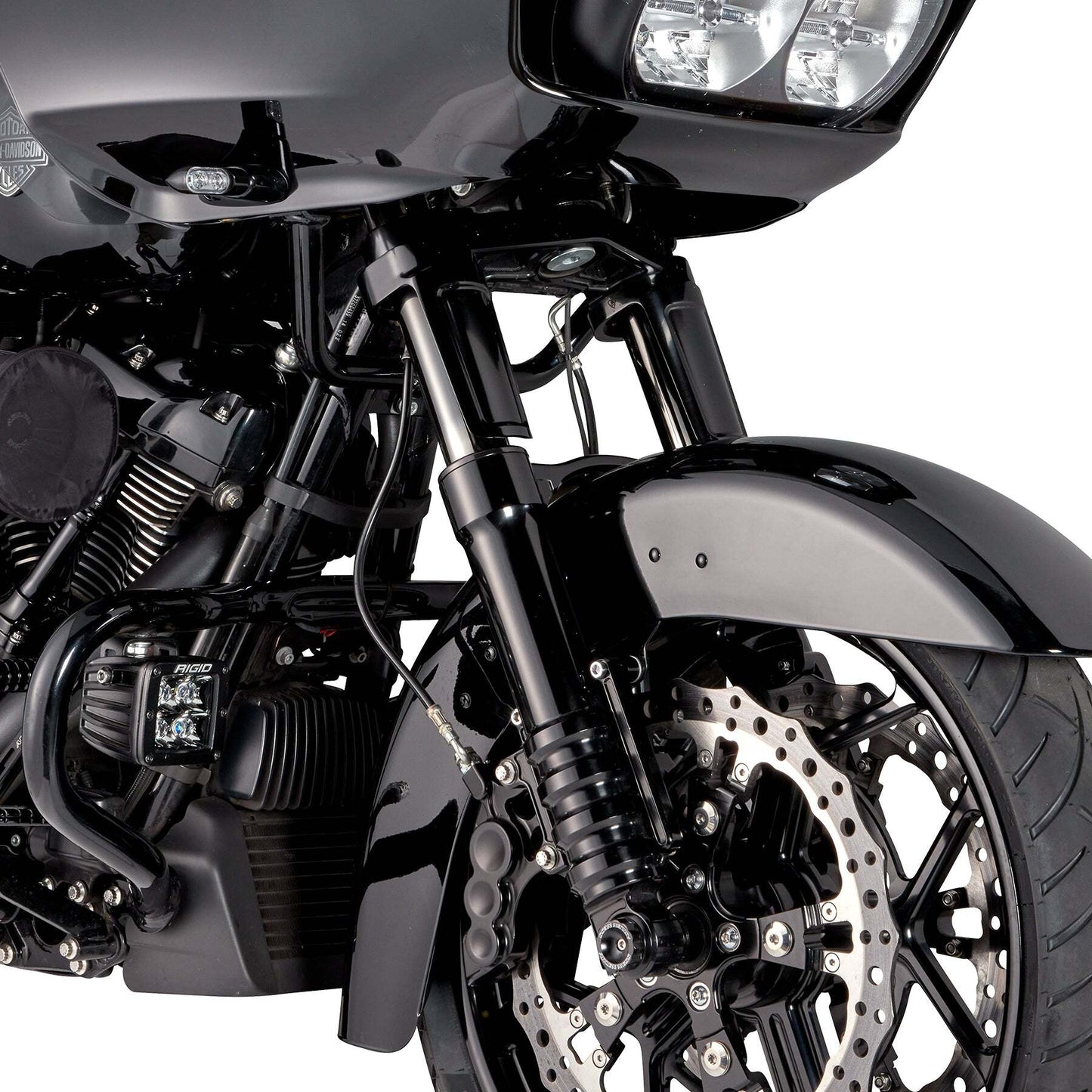

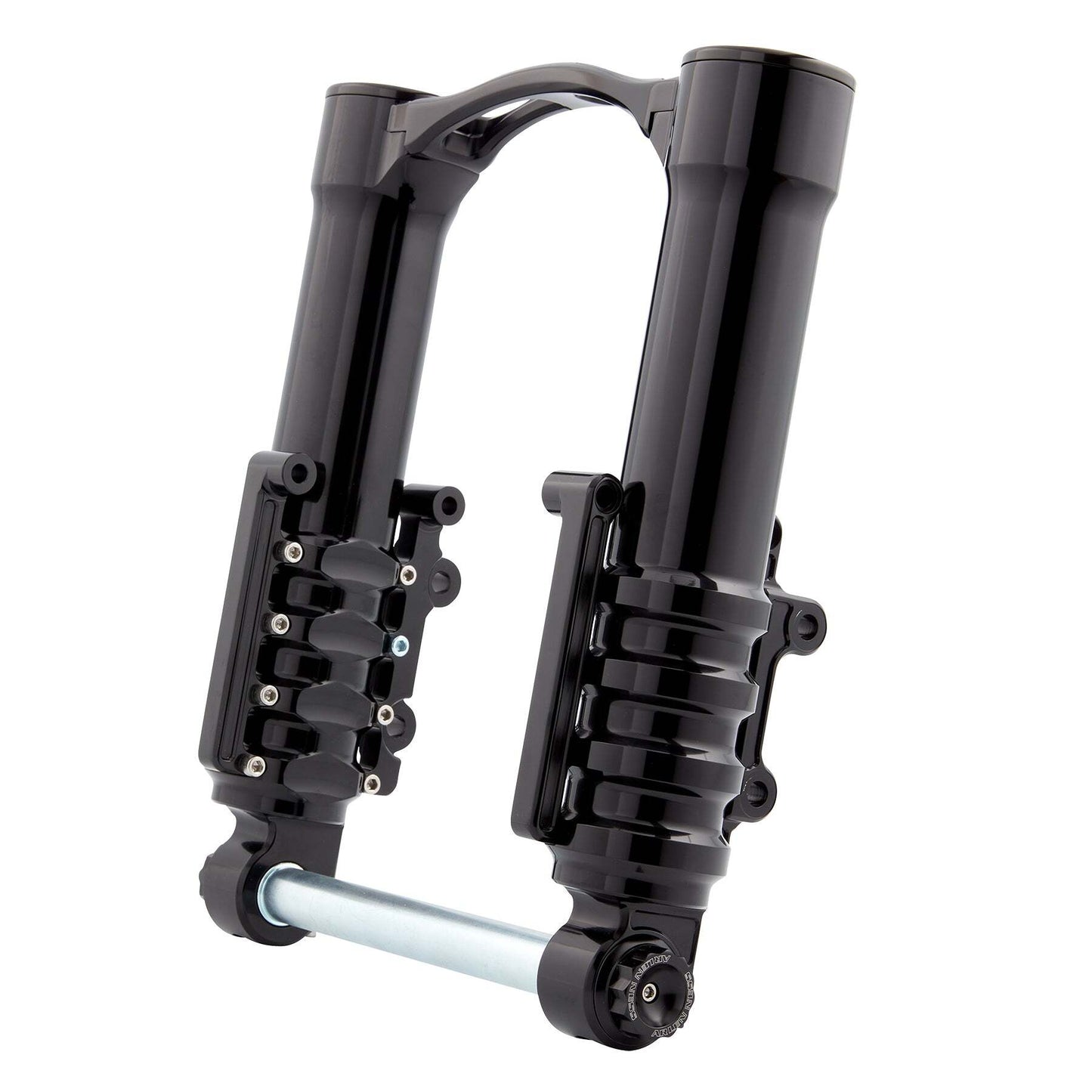

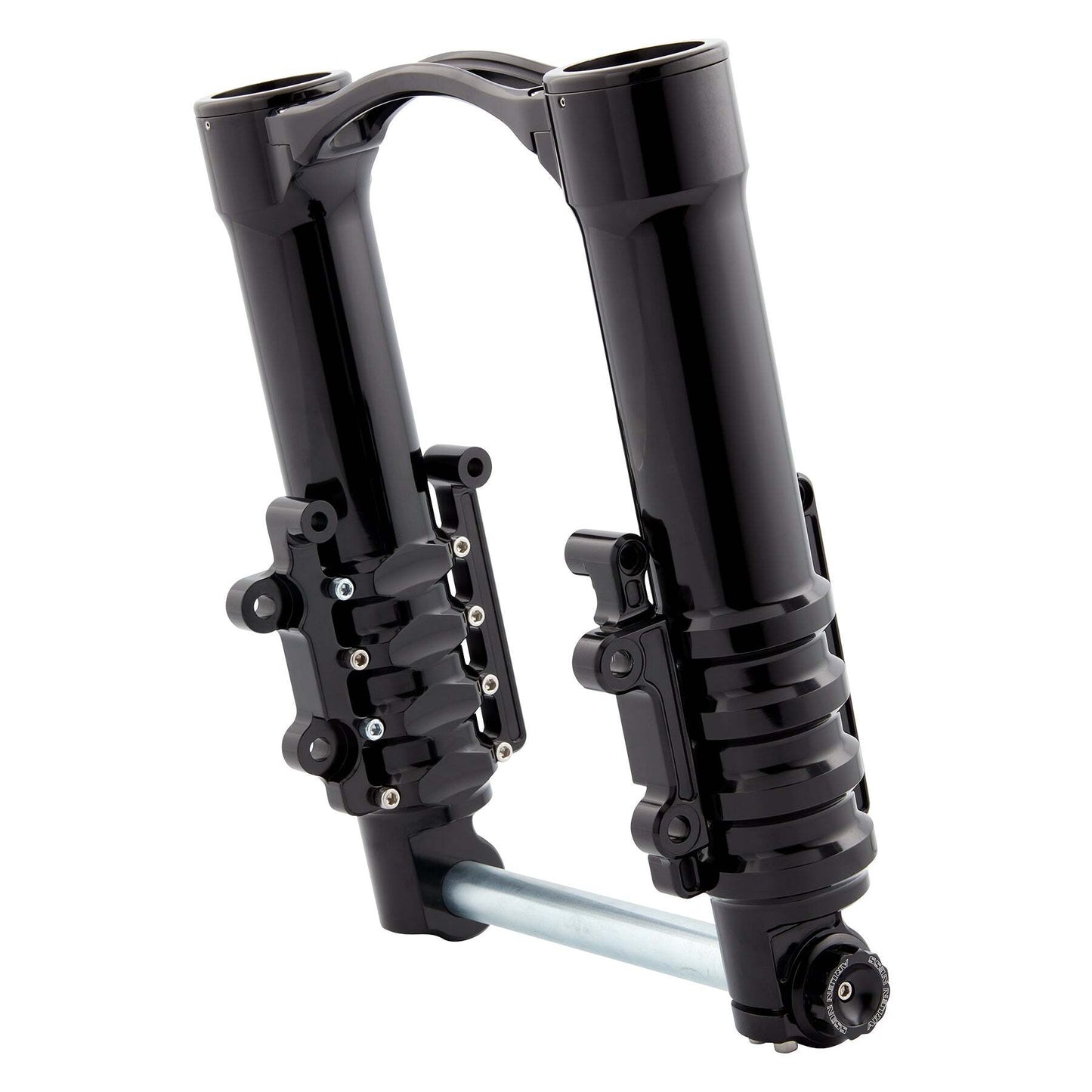

• Method® Fork Legs feature a performance based design with integrated features that help elevate the style and handling of FLT Touring models
• CNC machined from aircraft quality billet aluminum
• Integrated "No Flex" fork brace flows seamlessly with the lines of the fork legs, adding rigidity & stability to the front end for improved handling
• CNC machined fender mounts & brake caliper mounts
• Billet 12-point style axle nuts
• Dual disc, choose from factory (axial) or radial style caliper mounts
• Brake caliper mounts are designed for factory size 11.8" diameter brake rotors, will accept up to 14" oversized rotors
• Radial caliper mounts are 100mm bolt pattern, optional 108mm bolt pattern radial brackets are available separately
• Designed for 18" to 21" front wheels (21" front wheels require custom fender / fork brace spacers)
• Accepts both factory & aftermarket performance suspension internals
• Includes set of fork seals & billet dust seal covers
• Fitment: 2014-2023 FLT Touring (EXCEPT: 2023 FLHXSE & FLTRXSE) & 2024 FLT Touring models (49mm fork tubes)

BRAKE CALIPER MOUNTS

• Dual Disc front brakes
• Choose from factory (axial) or radial (100mm) brake caliper mounts
• Accepts both factory & most aftermarket brake calipers
• Designed to fit 11.8" diameter front rotors, accepts up to 14" oversized rotors when using Arlen Ness® 14" 6-piston brake calipers
• Radial mounts are 100mm bolt pattern
• 108mm Radial mounts are also available separately

*Arlen Ness 14" 6-piston brake calipers are required when using 14" oversized front brake rotors

FRONT WHEEL & FENDER NOTES

• 19" front wheels accept both factory front fenders & Arlen Ness / aftermarket front fenders
• 21" front wheels require a custom Arlen Ness® or aftermarket front fender (custom fork brace spacers may be required)
• 18" fat front 180mm wheels require an Arlen Ness® fat front fender *will not accept fork boots

Harley-Davidson™ FLT Touring / Bagger Models: Dual

• 2000-2007 FLT
• 2008-2013 FLT
• 2014-2023 FLT (EXCEPT: 2023 FLHXSE & FLTRXSE)
• 2024 Touring Models

FITMENT DISCLAIMER

Fitment information is provided as a general reference only and is not guaranteed for any motorcycle, whether stock or modified. Compatibility may vary by year, model, and individual configuration.

Customers are responsible for verifying fitment prior to purchase. House of Harley-Davidson assumes no liability for purchases made based on incorrect or unverified fitment information.

Please contact our Parts Department with any questions before ordering at 414-282-2211
