Arlen Ness 18-317

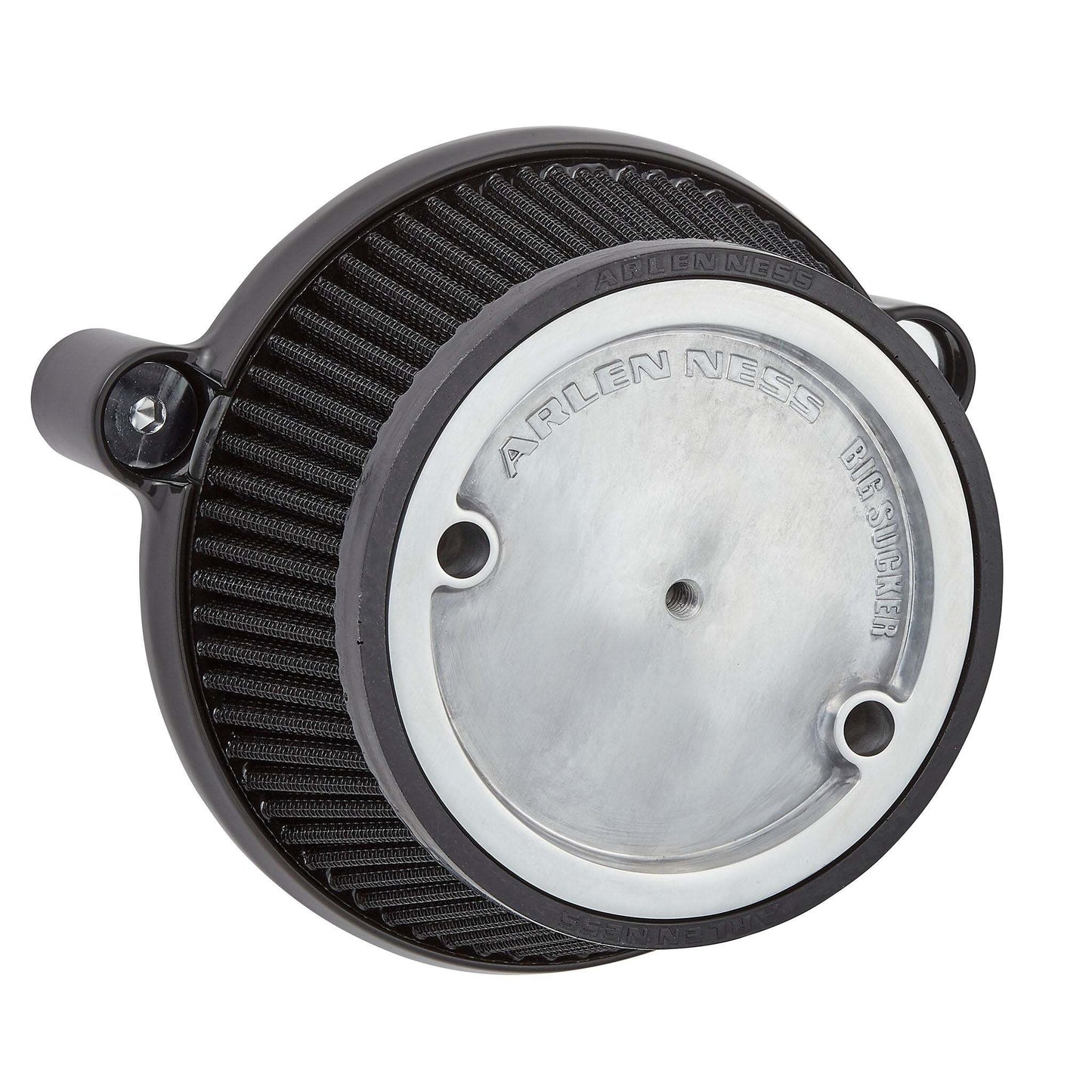

The new Big Sucker™ Stage 1 performance intake for Milwaukee-Eight® (M8) engines adds new features to the original industry leading air cleaner. The new patent-pending hidden breather system is o-ringed at the heads, passes through the backing plate and exits inside the mouth of the throttle body through proprietary shooter tubes

• Increases Horsepower & Torque
• Eliminates Oil Blow-bye Issues Associated with M8 Engines
• Black Pre-Oiled High Performance Filter
• Patented backing plate technology (US Patent: US 10,851,741 B1)
• One-Piece Aluminum Backing Plate
• Aluminum Filter Top Plate Design Eliminates Internal Mounting Hardware

Aluminum Backing Plate:

• Aluminum Construction
• Patent-pending hidden breather backing plate technology is a step up from our original patented system. Each breather is o-ringed at the heads, passes through the backing plate and exits inside the mouth of the throttle body through specially formed breather tubes
• Eliminates oil blow-bye  issues associated with performance intakes on M8 engines
• Patent-pending oil catch is integrated into the backing plate and stops any excess breather oil from reaching the air filter. Oil catch is serviceable, simply bolt-on and off when your ready to wash/service the air filter
• Formed aluminum filter plate design with integrated mounting studs eliminates any internal mounting hardware
• Radius air inlet engineered to provide maximum airflow
• Outer filter lip covers the urethane on the base of the air filter for a clean look

Performance Air Filter:

• Made from black pre-oiled cotton
• Engineered for optimum air flow and filtration. Perimeter flow design brings in air from all sides of the filter while filtering out all harmful debris
• Washable and re-useable, filter service kits are available

Air Cleaner Cover Options:

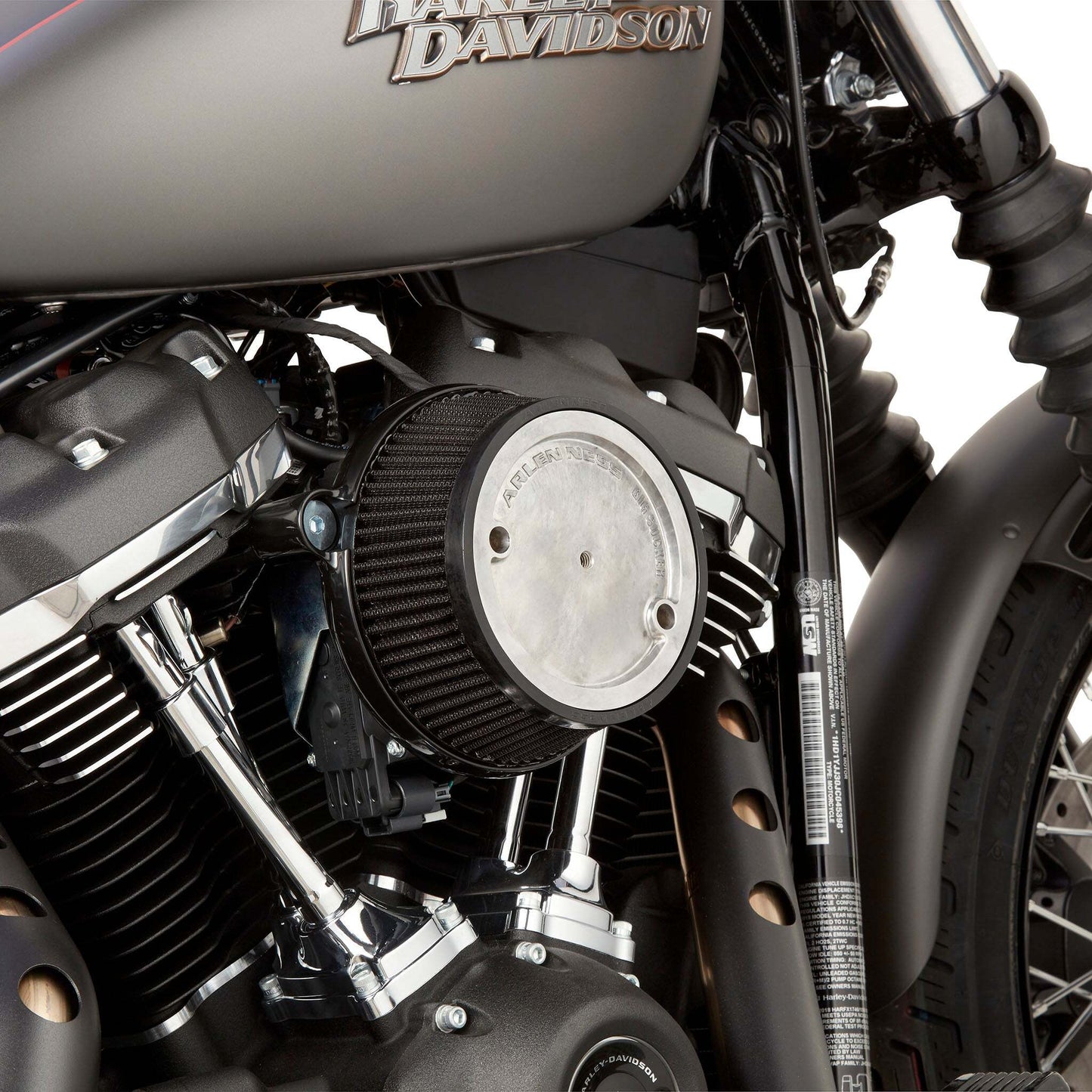

• Choose a Arlen Ness® Stage 1 custom cover for an exposed performance look

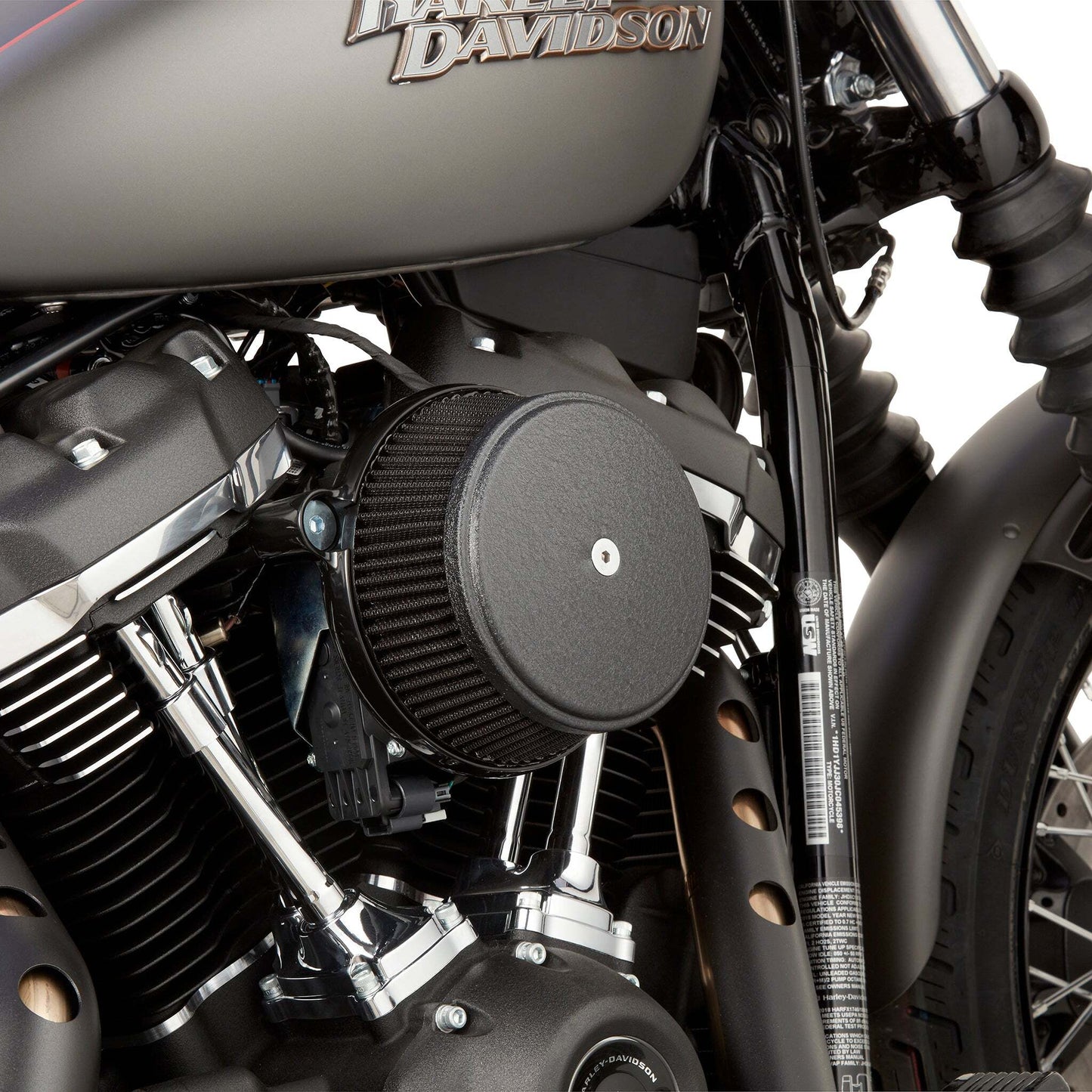

• 18-up Softail (FLDE/FLSL/FXLR) single-bolt factory air cleaner covers

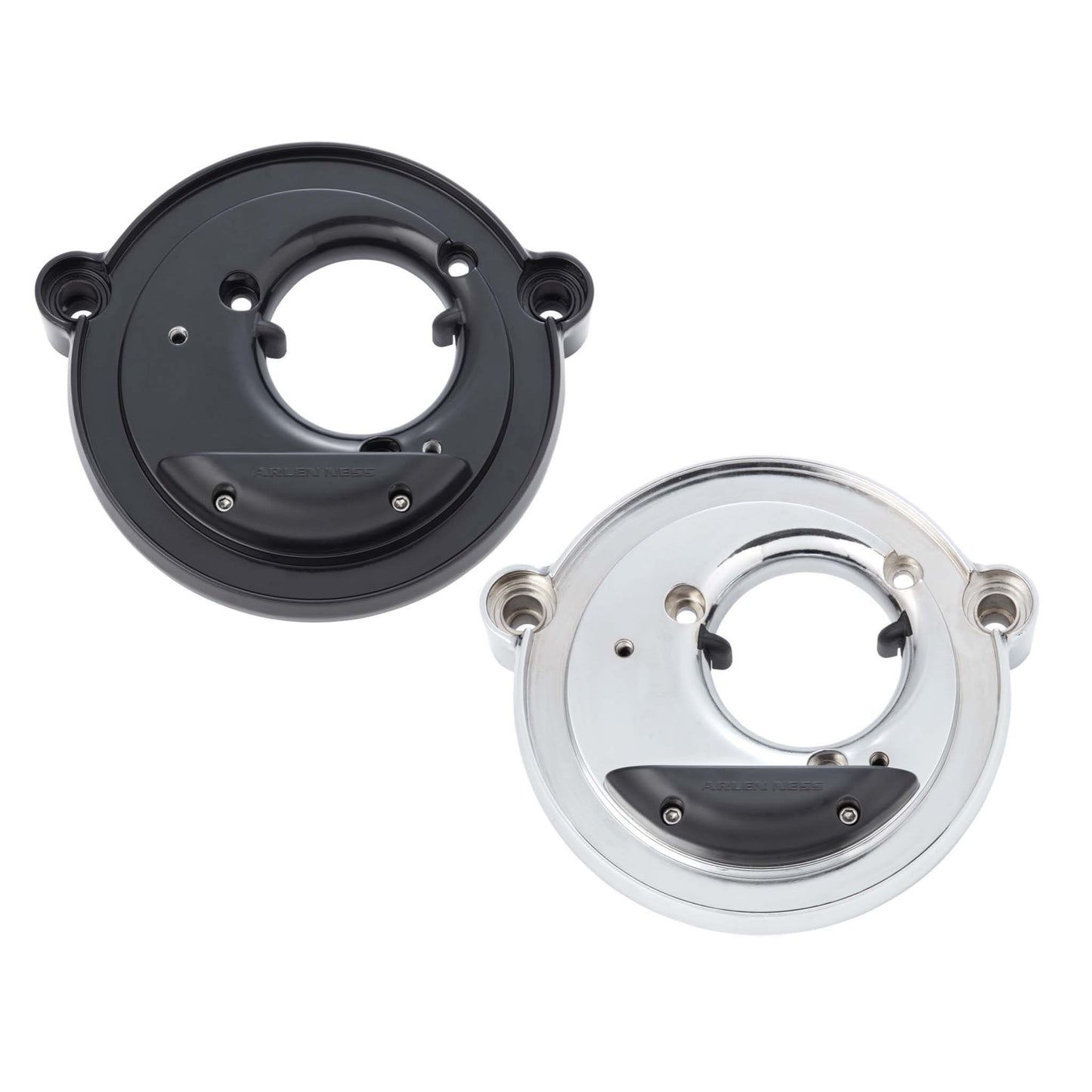

Backing Plate Assembly: 18-393C Chrome / 18-394B Black

• Aluminum Backing Plate, Black
• Aluminum Filter Top Plate
• Filter Top Plate Hardware, Stainless Socket Heads ¼ - 20 x 1-1/2” (2)

Patented Breather Vent System Components: Shooter Tubes & Oil Catch

• Oil Catch: 18-392-3
• Oil Catch Gasket: 18-392-4
• Oil Catch Hardware, Stainless Socket Heads 8-32 x ¾: H-619S (2)
• Shooter / Breather Tube Kit: BT-001

Stage 1 Hardware Kit, M8: HK-18458

• Breather Bolts, Chrome: 18-457-4C (2)
• Throttle Body Gasket: 18-457-3
• Breather Bolt O-Rings: H-024-4 (4)

Logo Plate / Throttle Body Badge Assembly

• Throttle Body Logo Badge: 18-203-8
• Throttle Body Badge, Black Button Heads M6 x 1.0: HM-122B (2)

Additional Components:

• Outer Cover Hardware, Chrome Flat Head 5/16-18 x 5/8: H-525C
• Instruction Sheet: 18392-I

17-2023 M8 MODELS (EXCEPT: 2023 FLHXSE & FLTRXSE)

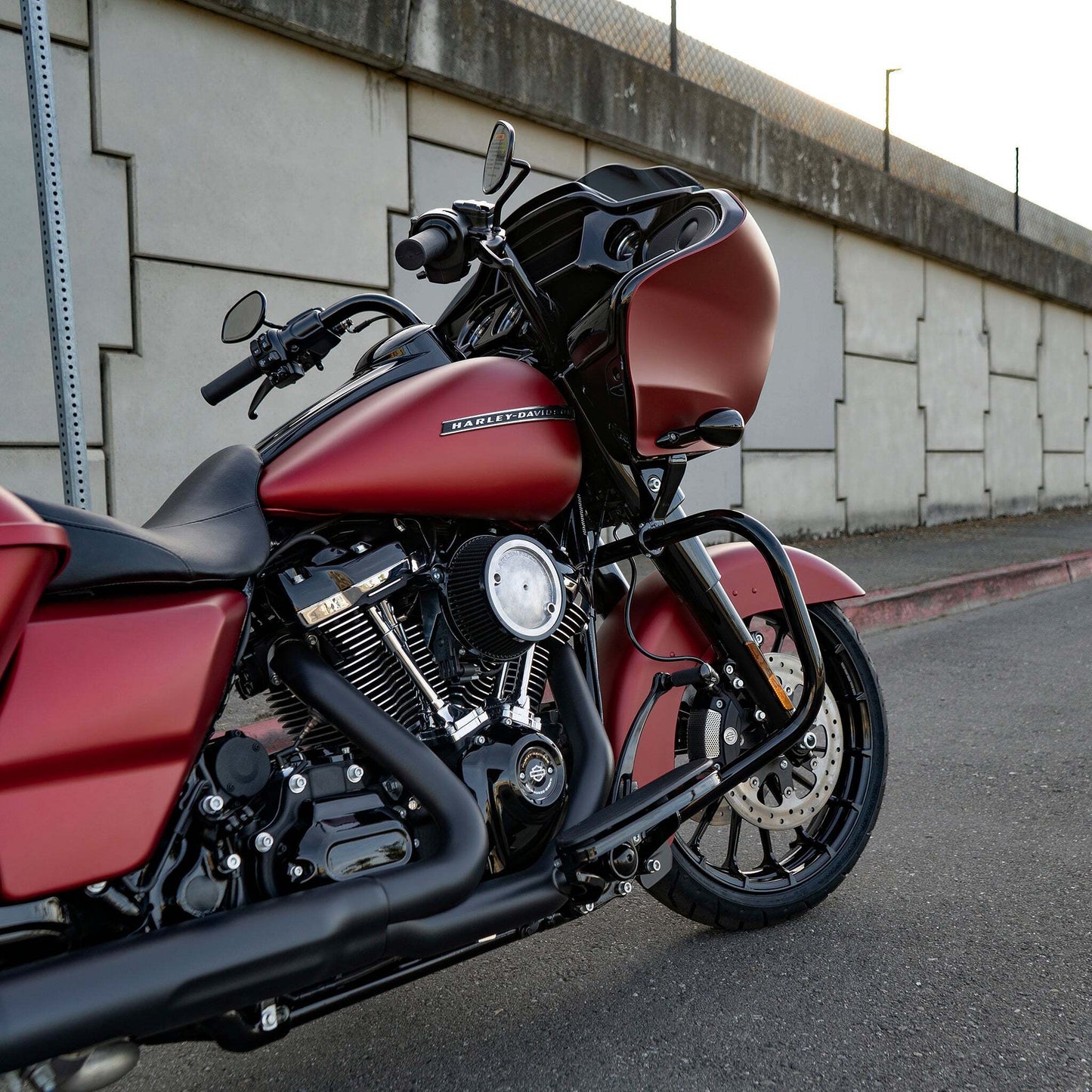

• 2017-up FLT Touring / Bagger Models: FLHT / FLHR / FLHX / FLTRX / FLTRU / H-D FL Trike
• 2018-up Softail™ Models
