Arlen Ness 50-291

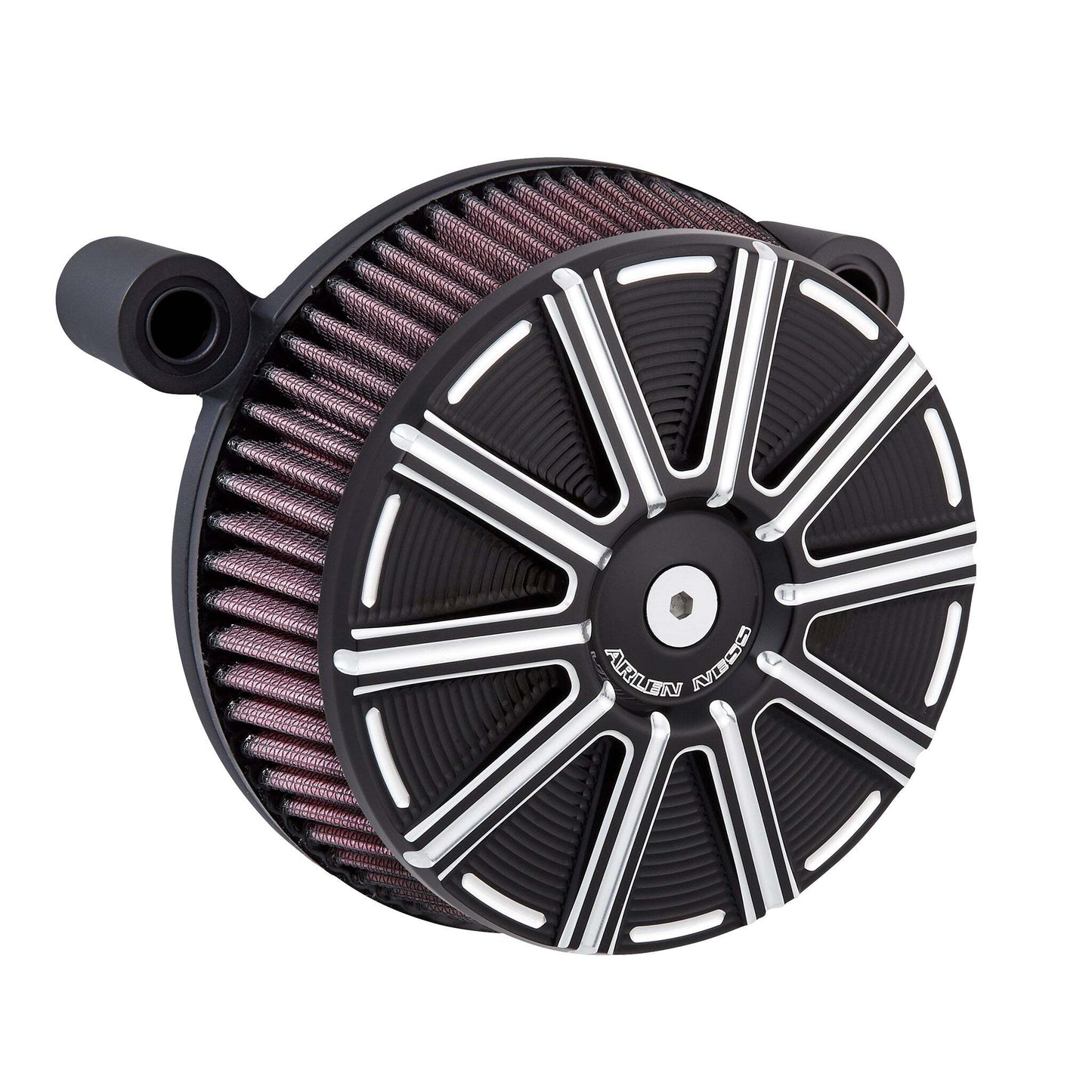

Big Sucker™ Stage 1 air cleaners are engineered and proven to give your engine maximum airflow for more horsepower & torque. The patented hidden breather backing plate is o-ringed at the heads and exits inside the mouth of the throttle body for a virtually closed loop system, eliminating the need for any external hoses or hardware

• 10-Gauge® Stage 1 Air Cleaner Cover
• Increases Horsepower & Torque
• Patented Hidden Breather Technology
• Pre-Oiled High Performance Filters
• One-Piece Aluminum Backing Plate
• Radius Air Inlet for Unobstructed Airflow

ALUMINUM BACKING PLATE FEATURES: TWIN CAM/SPORTSTER/EVOLUTION ENGINES

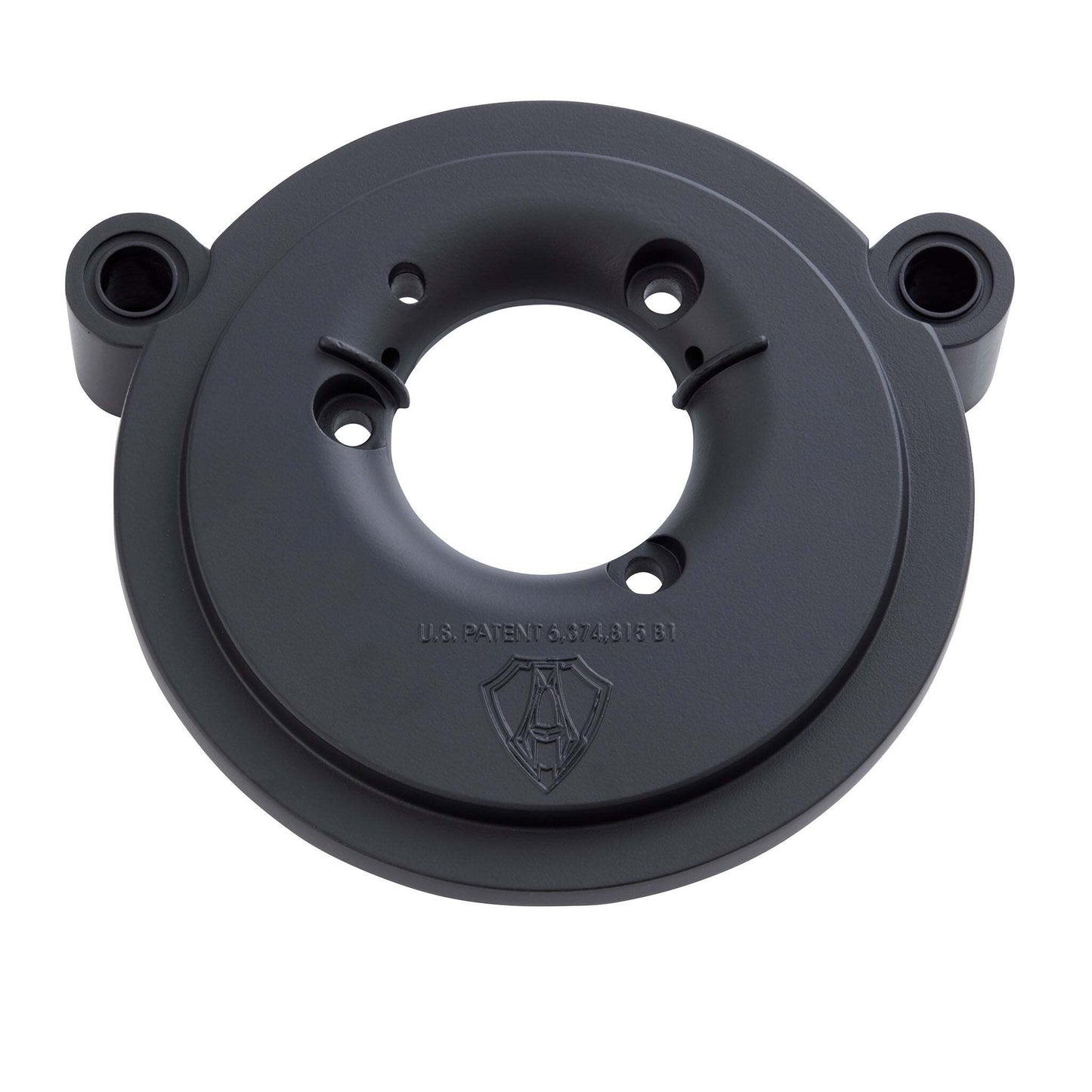

• One-piece aluminum backing plate
• Features our patented hidden breather technology, each breather is o-ringed at the heads and exits at the mouth of the throttle body. This creates a virtually closed look system which eliminates the need for any external hoses or hardware
• Smooth radius air inlet engineered to provide unobstructed airflow directly into the engine
• Available finishes: Standard Raw / Chrome / Matte Black Powdercoat

10-GAUGE STAGE 1 AIR CLEANER COVER

• 10-Gauge Stage 1 style cover
• CNC machined from billet aluminum
• Black anodize finish

PERFORMANCE AIR FILTERS: TWIN CAM/SPORTSTER/EVOLUTION ENGINES

• Each Big Sucker performance filter is handmade in the USA
• Available in red pre-oiled cotton or synthetic filter media
• Standard red pre-oiled cotton performance filters are made from 4 layers of surgical grade cotton for optimum flow & filtration
• Synthetics performance filters are made from a black synthetic filter element that is wrapped in a stainless steel jacket. Synthetic filters are water resistant and do not require oil
• All Stage 1 air filters are washable/re-usable, filter tune-up kits are available separately

TWIN CAM / SPORTSTER / EVOLUTION

BLACK BACKING PLATE (FITMENT SPECIFIC)

08-16 Touring / 16-17 Softails: 18-590

99-17 Twin Cam (Exc. FBW & 01 FI): 18-591

99-01 Fuel Injected (FI) FLT: 18-593

93-99 Evolution: 18-592

88-up XL Sportster: 18-594

HARDWARE KIT (FITMENT SPECIFIC)

 08-16 Touring /16-17 Softails: 18-530

99-17 Twin Cam (Exc. FBW & 01 FI): 18-531

99-01 Fuel Injected (FI) FLT: 18-533

93-99 Evolution: 18-532

88-up XL Sportster: 18-534

AIR FILTER, RED PRE-OILED

08-16 Touring / 16-17 Softails (FBW): 18-080

99-17 Twin Cam/88-up XL/93-99 Evo: 18-098

99-01 Fuel Injected (FI) FLT: 18-097

AIR FILTER, SYNTHETIC

08-16 Touring /  16-17 Softail (FBW) : 50-083

99-17 Twin Cam/88-up XL/93-99 Evo: 50-084

99-01 Fuel Injected (FI) FLT: 50-087

10-GAUGE AIR CLEANER COVER, BLACK: 18-762

COVER HARDWARE, 5/16-18 X 5/8: H-525C

99-17 TWIN CAM (EXCEPT: FBW)

• 2001-2017 Twin Cam Delphi EFI (Fuel Injected)
• 1999-2006 Twin Cam CV Carb
• *NOTE: Will not fit Fly-By-Wire Models: 08-17 FLT Touring  / 16-17 Softail / 16-17 Dyna FXDLS & 99-01 F.I. FLT

 08-16 TOURING / 16-17 SOFTAIL  (FBW)

• 2008-2016 FLT Touring / Bagger - FLHT / FLHR / FLHX / FLTR / H-D FL Trike
• 2016-2017 Softails
• 2016-2017 Dyna FXDLS
• 2014-2015 FLSTNSE / 13-14 FXSBSE / 11-12 FLSTSE
• *NOTE: Twin Cam models equipped w/ FBW (Fly-by-Wire or Throttle-by-Wire)

 91-UP XL SPORTSTER

• 1991-up Sportster 883 / 1200  with CV Carb or Delphi EFI

 99-01 FUEL INJECTED FLT

• 1999-2001 FLT Touring Models- FLHTI / FLHRI

 93-99 EVO
