600-028 | Velocity 90 Air Cleaners, Black
Pickup currently unavailable
Arlen Ness 600-028

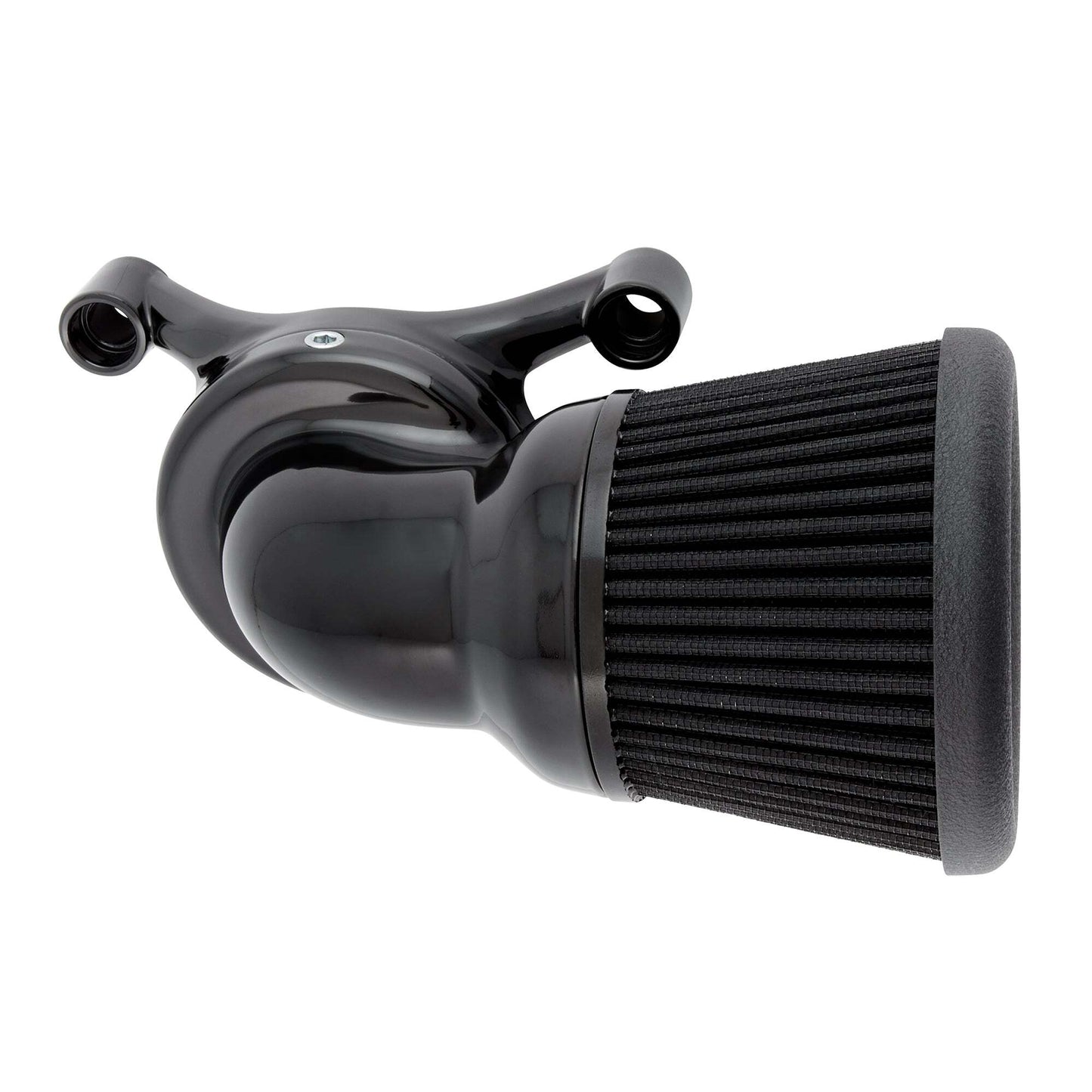

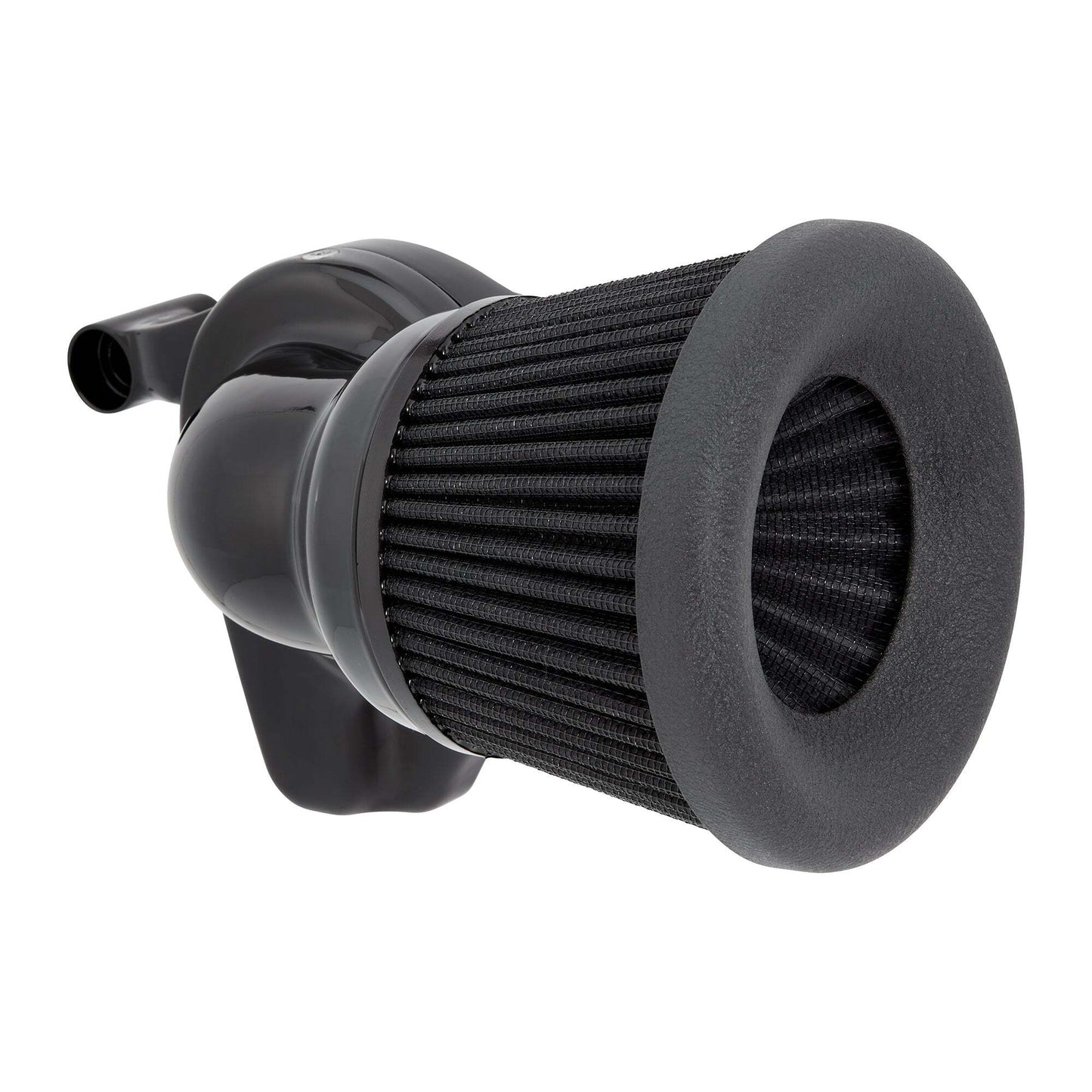

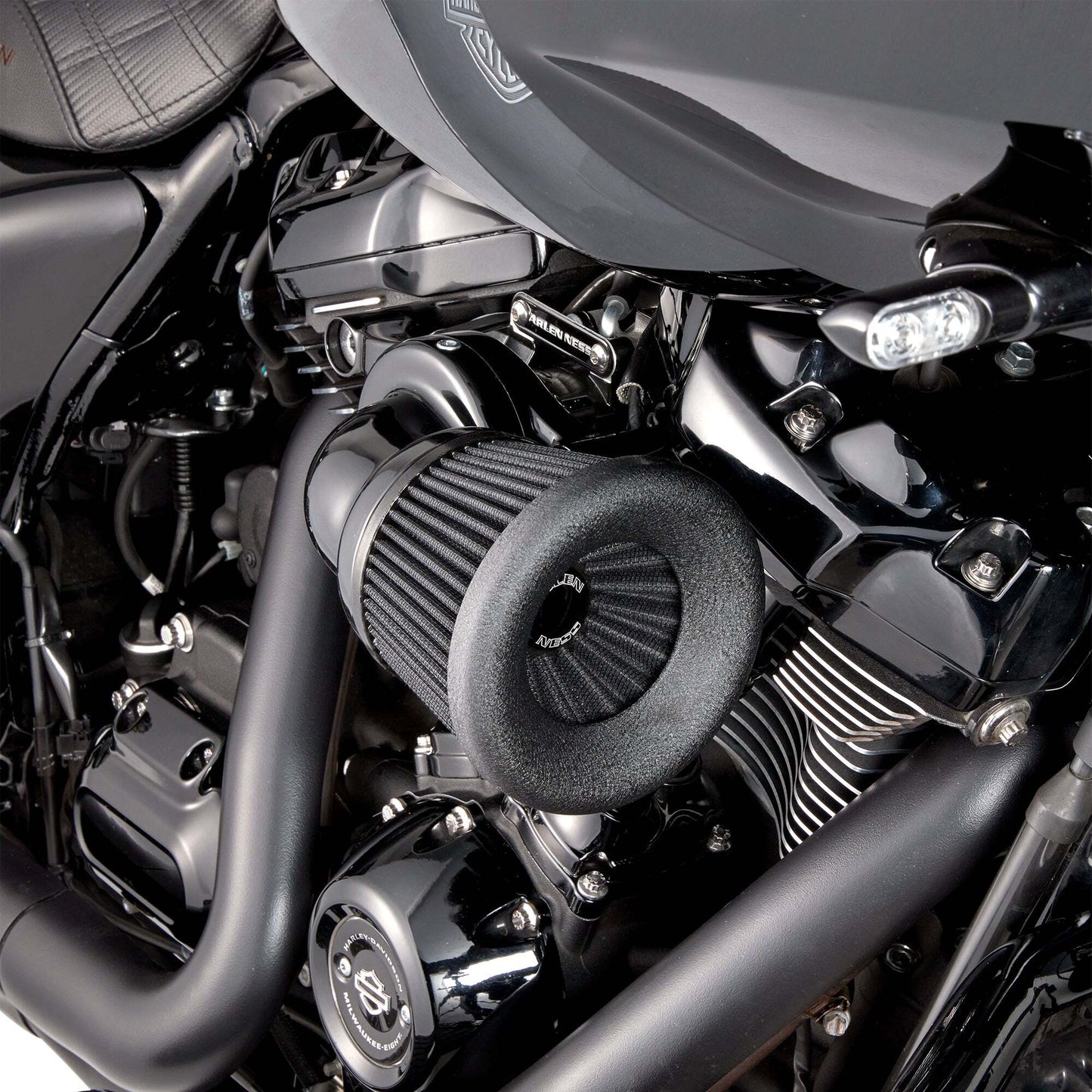

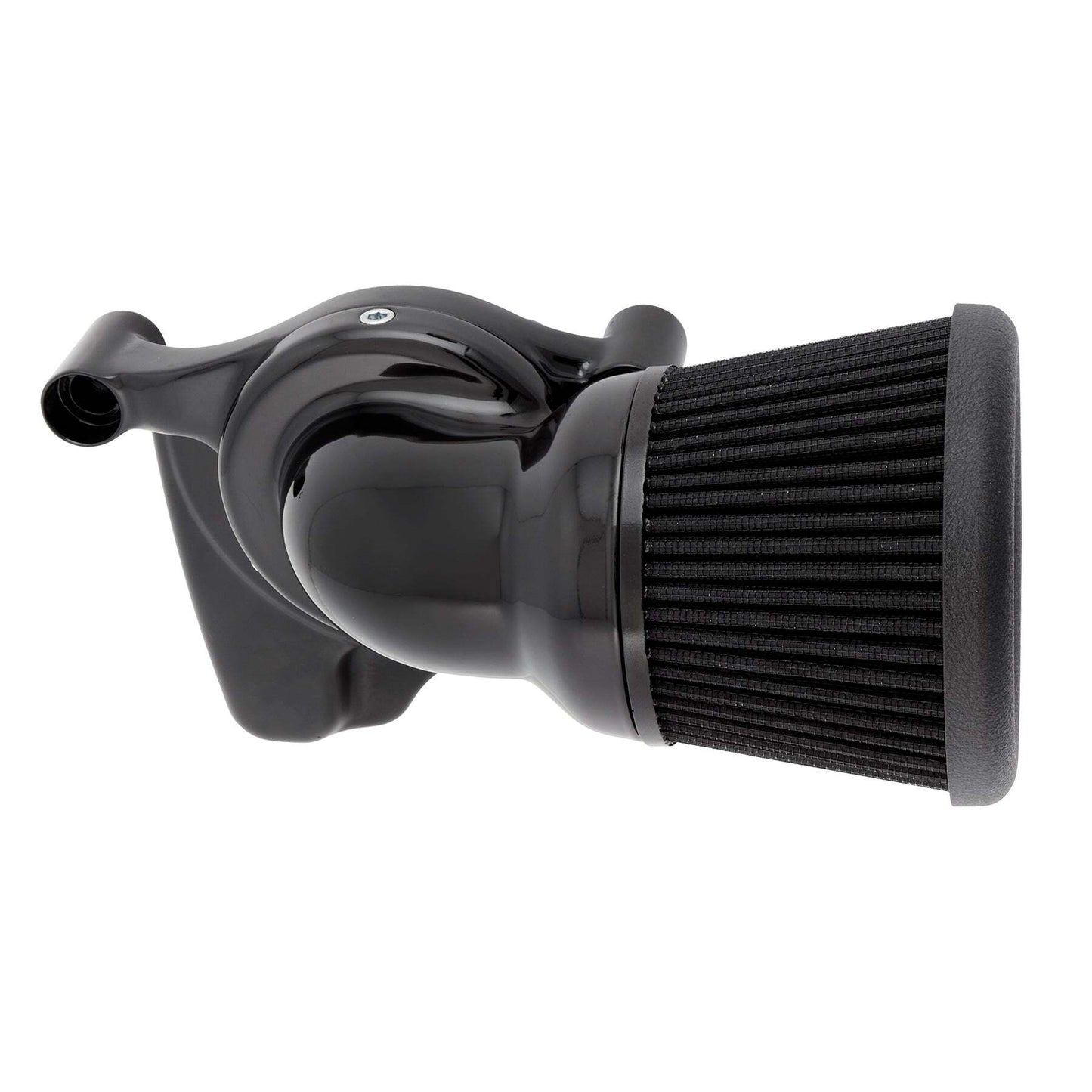

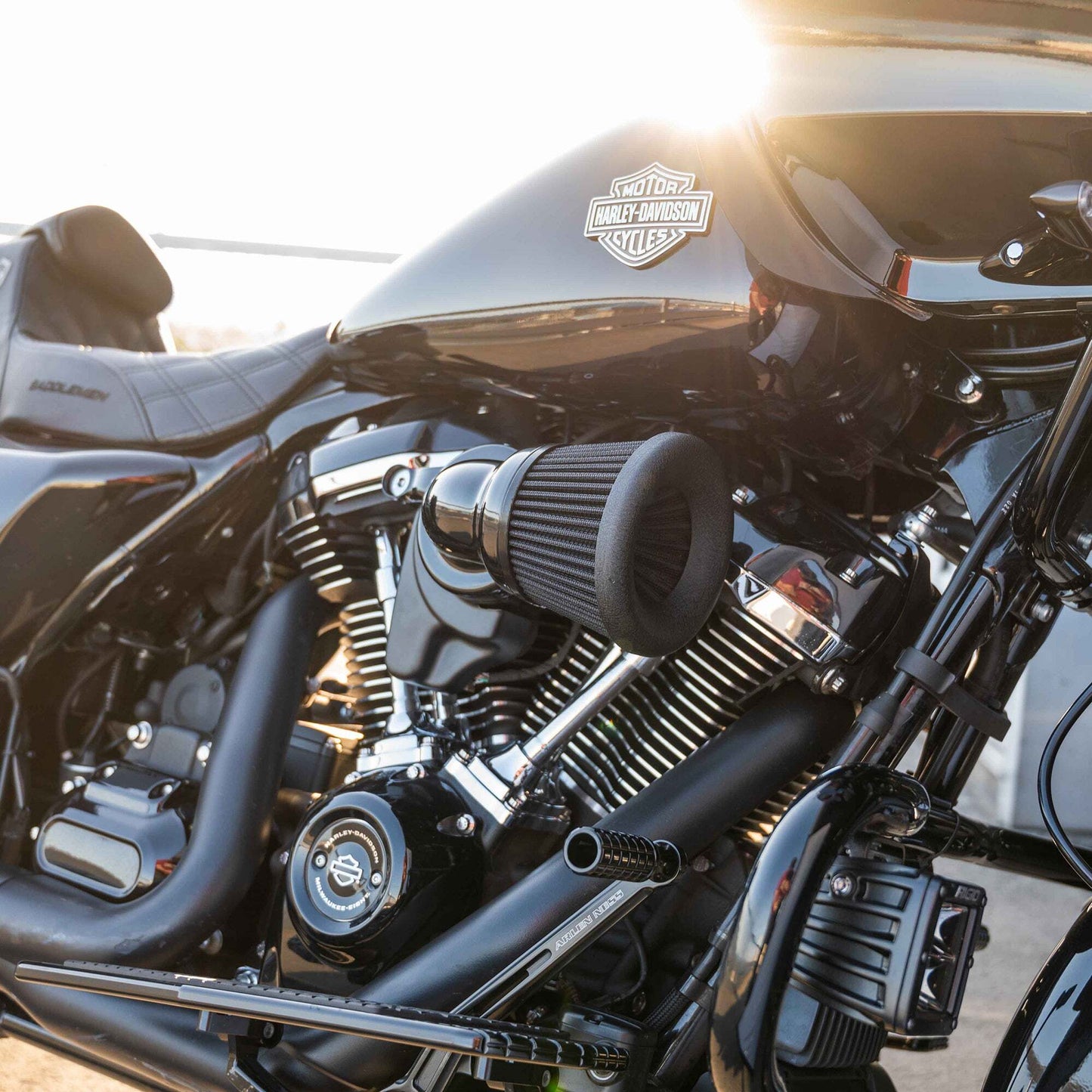

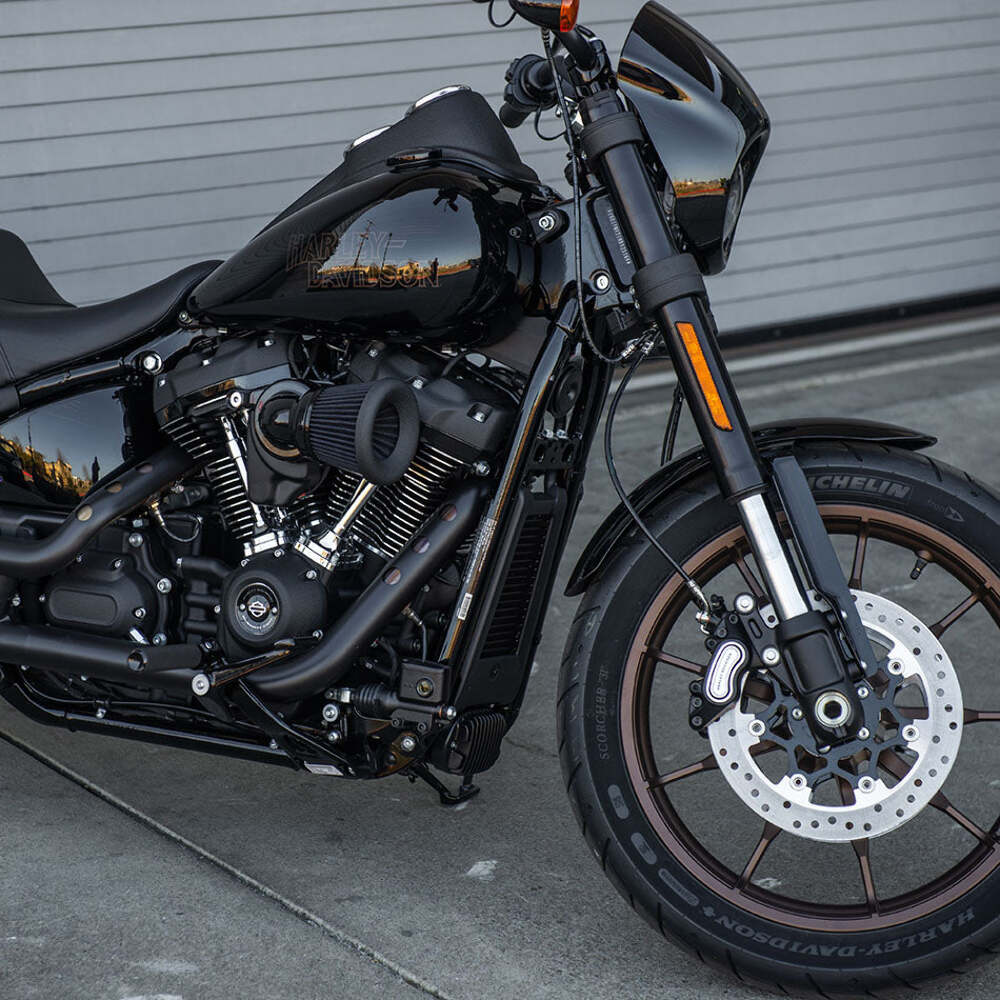

Velocity 90 performance air cleaners feature a forward-facing intake design positioned at a 90° angle. The intake's 90° angle & proprietary Velocity filter result in big performance gains without sacrificing legroom
- 90° Forward-Facing Intake Design
- Patented hidden breather technology
- High performance black oiled cotton air filter
- Increased Horsepower, torque & mileage
- Excellent Leg Room
- Will work with factory Bagger lower fairings (lowers)
- Aluminum Backing Plate & Air Cleaner Elbow
- Black powder coat finish
Aluminum One-Piece Backing Plate:
- Made from aluminum
- Our patented hidden breather technology is o-ringed at the heads and exist out the mouth of the injector/carb to provide efficient engine breathing, eliminating the need for any external hoses or hardware for a virtually closed loop system
- Smooth and sculpted backing plate shape wraps around the throttle body for excellent leg room
- Milwaukee-Eight™ (M8) engine applications include a formed throttle servo cover that is finished in black powdercoat
- Backing plate is finished in gloss black powdercoat
HIGH PERFORMANCE BLACK OILED COTTON FILTER:
- High performance black oiled cotton air filter
- Features a inverted top design that forces air through the front of the filter in addition to the sides of the filter
- Smooth outer filter ring integrated into the front of the filter acts as a radius air inlet
- Pre-Filters / Rain Socks are available separately
Aluminum Air Cleaner Elbow:
- Lightweight aluminum design
- 90° positioning & short overall length results in excellent legroom and compatible w/ FLT Bagger lowers
- Hidden air filter clamping area for no exposed clamps for in a clean look
- Finished in gloss black powdercoat
BACKING PLATE ASSEMBLY (FITMENT SPECIFIC)
08-16 FLT / 16-17 SOFTAIL & FXDLS (FBW)
Backing Plate: 81-000-1B
Breather Bolts: 81-005-2C (2)
Breather Bolt Copper Washers: H-070 (2)
Breather Bolt O-Rings (2pack): H-024
Throttle Body Gasket: 18-500-5
Throttle Body Hardware, 1/4-20 x 3/4: H-656Z (3)
00-17 TWIN CAM (EXC. FBW)
Backing Plate: 81-005-1B
Breather Bolts: 81-005-2C
Breather Bolt Copper Washers:H-070
Breather Bolt O-Rings (2pack): H-024
Throttle Body Gasket: 18-510-2
Throttle Body Hardware, 1/4-20 x 3/4: H-656Z (3)
Throttle Body Elbow Intake Cover: 81-005-3B
Throttle Body Elbow Cover bolts 6-32x14 Flathead Allen: H504S (2)
91-UP XL SPORTSTER
Backing Plate: 81-010-1B
Breather Bolts: 81-010-3C (2)
Breather Bolt Copper Washers: H-070 (2)
Breather Bolt O-Rings (2pack): H-024
Manifold Spacer: 18-492-2
Throttle Body Gasket: 18-500-5
Throttle Body Hardware, 1/4-20 x 3/4: H-656Z (3)
17-UP M8 MODELS
Backing Plate: 81-015-1B
Breather Bolts: 18-457-4C
Breather Bolt Copper Washers: H-070 (2)
Breather Bolt O-Rings (2pack): H-024
Throttle Body Gasket: 18-457-3
Throttle Body Hardware, 1/4-20 x 3/4: H-656Z (3)
M8 Throttle Body Badge: 18-203-8
M8 Servo Cover: 81-016-1B
Stainless Steel Washers: H-338S(3)
6-32 X ¼ Sockethead: H-507Z (3)
ELBOW & FILTER ASSEMBLY
Intake Elbow: 81-000-2B
Intake Elbow Hardware: H-654ZB (3)
Velocity Performance Air Filter: 81-200-3
Filter Logo Badge: 18-920-2B
99-17 TWIN CAM (EXCEPT: FBW)
- 2001-2017 Twin Cam Delphi EFI (Fuel Injected)
- 1999-2006 Twin Cam CV Carb
- *NOTE: Will not fit Fly-By-Wire Models: 08-17 FLT Touring / 16-17 Softail / 16-17 Dyna FXDLS & 99-01 F.I. FLT
08-16 TOURING / 16-17 SOFTAIL & FXDLS (FBW)
- 2008-2016 FLT Touring / Bagger - FLHT / FLHR / FLHX / FLTR / H-D FL Trike
- 2016-2017 Softails
- 2016-2017 Dyna FXDLS
- 2014-2015 FLSTNSE / 13-14 FXSBSE / 11-12 FLSTSE
- *NOTE: Twin Cam models equipped w/ FBW (Fly-by-Wire or Throttle-by-Wire)
91-UP XL SPORTSTER
- 1991-up Sportster 883 / 1200 with CV Carb or Delphi EFI
17-2023 M8 MODELS (EXCEPT: 2023 FLHXSE & FLTRXSE)
- 2017-up FLT Touring / Bagger - FLHT / FLHR Road King / FLHX Street Glide / FLTR Road Glide
- 2018-up M8 Softail Models
FITMENT DISCLAIMER
Fitment information is provided as a general reference only and is not guaranteed for any motorcycle, whether stock or modified. Compatibility may vary by year, model, and individual configuration.
Customers are responsible for verifying fitment prior to purchase. House of Harley-Davidson assumes no liability for purchases made based on incorrect or unverified fitment information.
