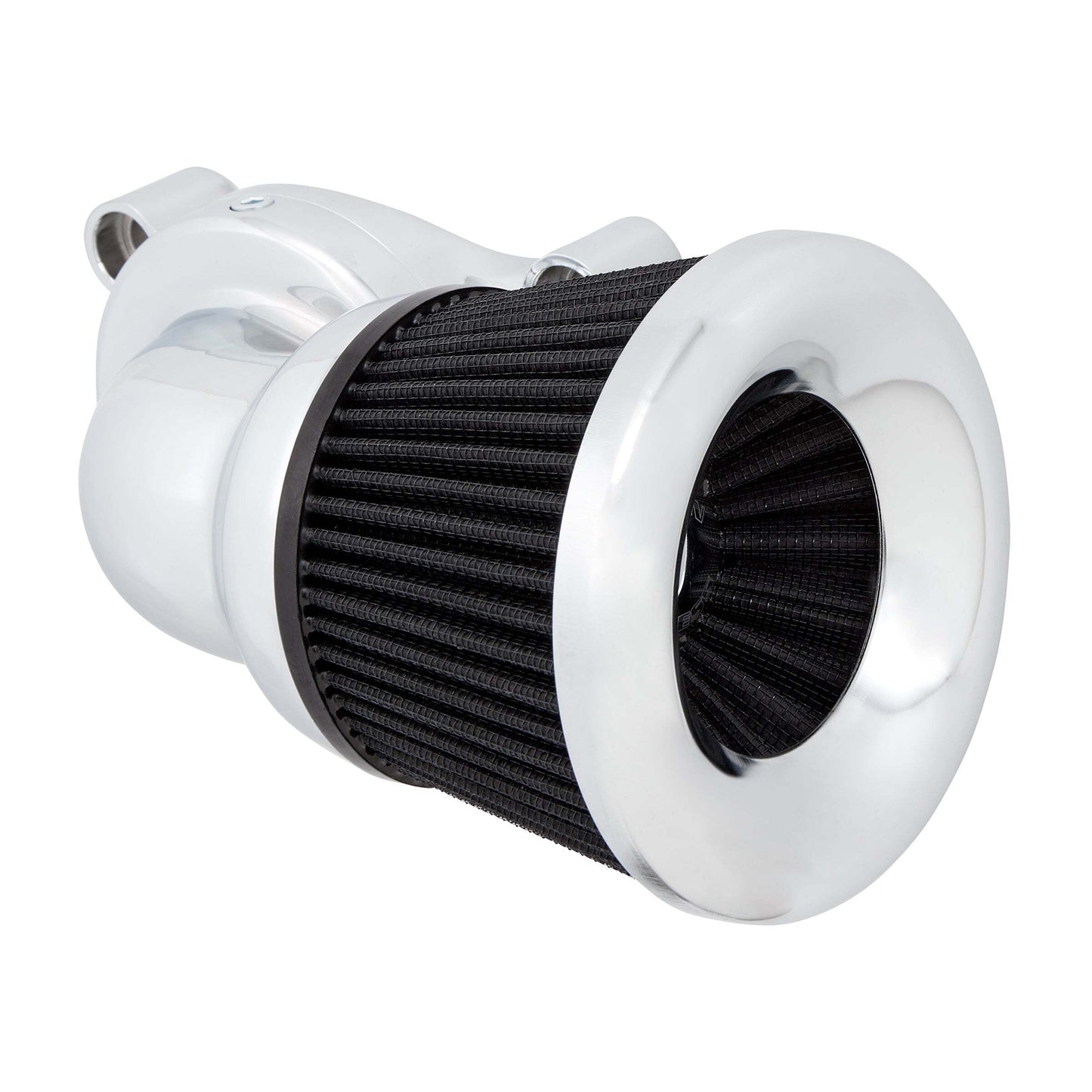

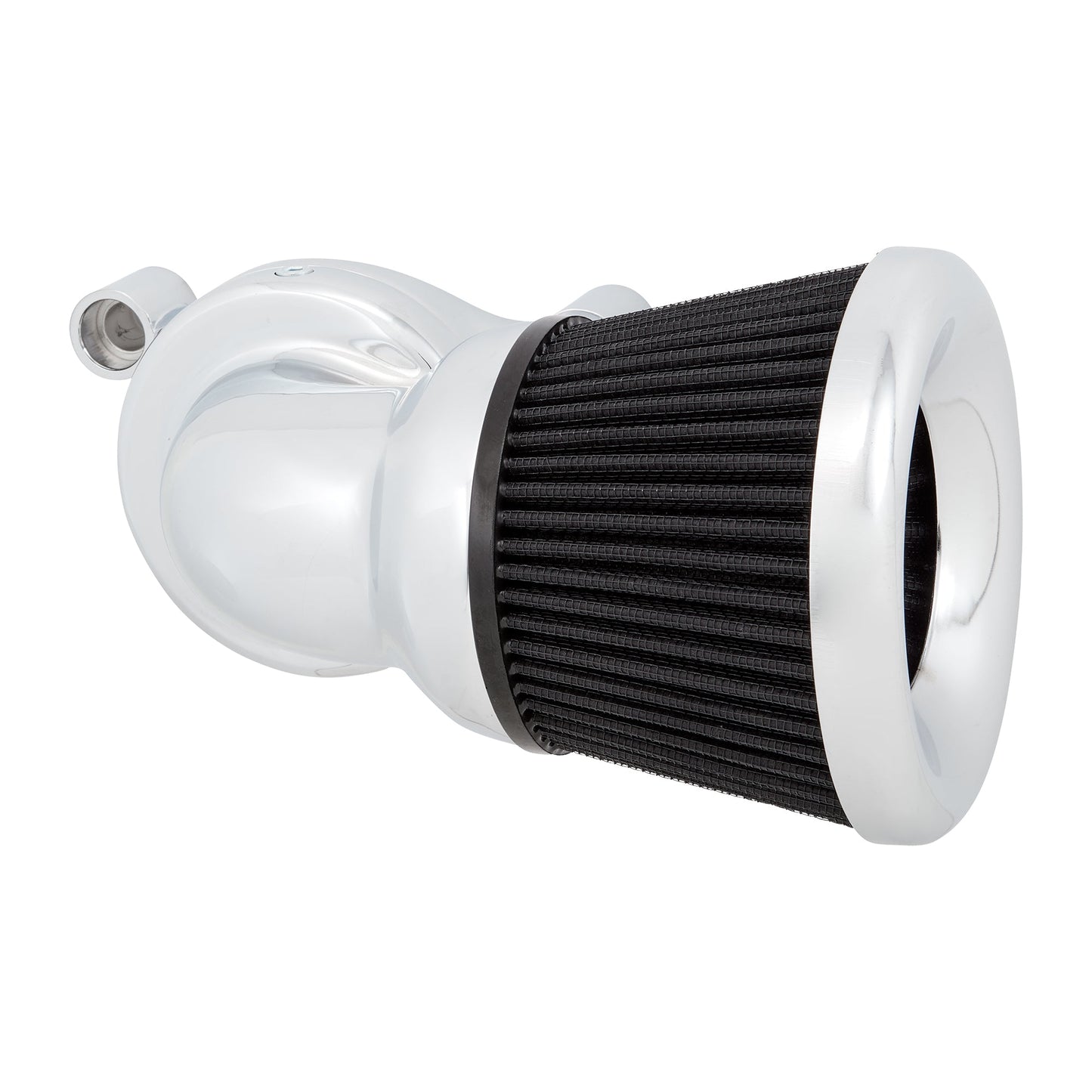

Arlen Ness 600-029

Velocity 90 performance air cleaners feature a forward-facing intake design positioned at a 90° angle. The intake's 90° angle & proprietary Velocity filter result in massive performance gains while keeping ample legroom for aggressive riders

• 90° Forward-Facing Intake Design
• Patented hidden breather technology
• High performance black oiled cotton air filter
• Increased Horsepower, torque & mileage
• Excellent Leg Room
• Will work with factory Bagger lower fairings (lowers)
• Aluminum Backing Plate & Air Cleaner Elbow
• Chrome finish

Aluminum One-Piece Backing Plate:

• Made from aluminum
• Our patented hidden breather technology is o-ringed at the heads and exist out the mouth of the injector/carb to provide efficient engine breathing, eliminating the need for any external hoses or hardware for a virtually closed loop system
• Smooth and sculpted backing plate shape wraps around the throttle body for excellent leg room
• Milwaukee-Eight™ (M8) engine applications include a formed throttle servo cover that is finished in black powdercoat
• Backing plate is finished chrome

High Performance Synthetic Air Filter:

• High performance black oiled cotton air filter
• Features a inverted top design that forces air through the front of the filter in addition to the sides of the filter
• Smooth outer filter ring integrated into the front of the filter acts as a radius air inlet

Aluminum Air Cleaner Elbow:

• Aluminum single-piece design
• 90° positioning & short length results in excellent legroom by keeping intake tight to motorcycle (will fit with FLT Bagger lowers)
• Hidden air filter clamping area for no exposed clamps resulting in a clean look
• Finished in chrome

BACKING PLATE ASSEMBLY (FITMENT SPECIFIC)

08-16 FLT / 16-17 SOFTAIL & FXDLS (FBW)

Backing Plate: 81-000-1C

Breather Bolts: 81-005-2C (2)

Breather Bolt Copper Washers: H-070 (2)

Breather Bolt O-Rings (2pack): H-024

Throttle Body Gasket: 18-500-5

Throttle Body Hardware, 1/4-20 x 3/4: H-656Z (3)

00-17 TWIN CAM (EXC. FBW)

Backing Plate: 81-005-1C

Breather Bolts: 81-005-2C

Breather Bolt Copper Washers:H-070

Breather Bolt O-Rings (2pack): H-024

Throttle Body Gasket: 18-510-2

Throttle Body Hardware, 1/4-20 x 3/4: H-656Z (3)

Throttle Body Elbow Intake Cover: 81-005-3B

Throttle Body Elbow Cover bolts 6-32x14 Flathead Allen: H504S (2)

91-UP XL SPORTSTER

Backing Plate: 81-010-1C

Breather Bolts: 81-010-3C (2)

Breather Bolt Copper Washers: H-070 (2)

Breather Bolt O-Rings (2pack): H-024

Manifold Spacer: 18-492-2

Throttle Body Gasket: 18-500-5

Throttle Body Hardware, 1/4-20 x 3/4: H-656Z (3)

17-UP M8 MODELS

Backing Plate: 81-015-1C

Breather Bolts: 18-457-4C

Breather Bolt Copper Washers: H-070 (2)

Breather Bolt O-Rings (2pack): H-024

Throttle Body Gasket: 18-457-3

Throttle Body Hardware, 1/4-20 x 3/4: H-656Z (3)

M8 Throttle Body Badge: 18-203-8

M8 Servo Cover: 81-016-1B

Stainless Steel Washers: H-338S(3)

6-32 X ¼ Sockethead: H-507Z (3)

ELBOW & FILTER ASSEMBLY

Intake Elbow: 600-029-1C

Intake Elbow Hardware: H-654ZB (3)

Velocity Performance Air Filter: 81-200-3

Filter Logo Badge: 18-920-2B

99-17 TWIN CAM (EXCEPT: FBW)

• 2001-2017 Twin Cam Delphi EFI (Fuel Injected)
• 1999-2006 Twin Cam CV Carb
• *NOTE: Will not fit Fly-By-Wire Models: 08-17 FLT Touring  / 16-17 Softail / 16-17 Dyna FXDLS & 99-01 F.I. FLT

 08-16 TOURING / 16-17 SOFTAIL  (FBW)

• 2008-2016 FLT Touring / Bagger - FLHT / FLHR / FLHX / FLTR / H-D FL Trike
• 2016-2017 Softails
• 2016-2017 Dyna FXDLS
• 2014-2015 FLSTNSE / 13-14 FXSBSE / 11-12 FLSTSE
• *NOTE: Twin Cam models equipped w/ FBW (Fly-by-Wire or Throttle-by-Wire)

 91-UP XL SPORTSTER

• 1991-up Sportster 883 / 1200  with CV Carb or Delphi EFI

17-2023 M8 MODELS (EXCEPT: 2023 FLHXSE & FLTRXSE)

• 2017-up FLT Touring / Bagger - FLHT / FLHR Road King / FLHX Street Glide / FLTR Road Glide
• 2018-up Softail Models
