S&S Cycle 475G Gear Drive Camshaft Kit | 330-0645
Pickup currently unavailable
S&S Cycle 330-0645
Features & Benefits

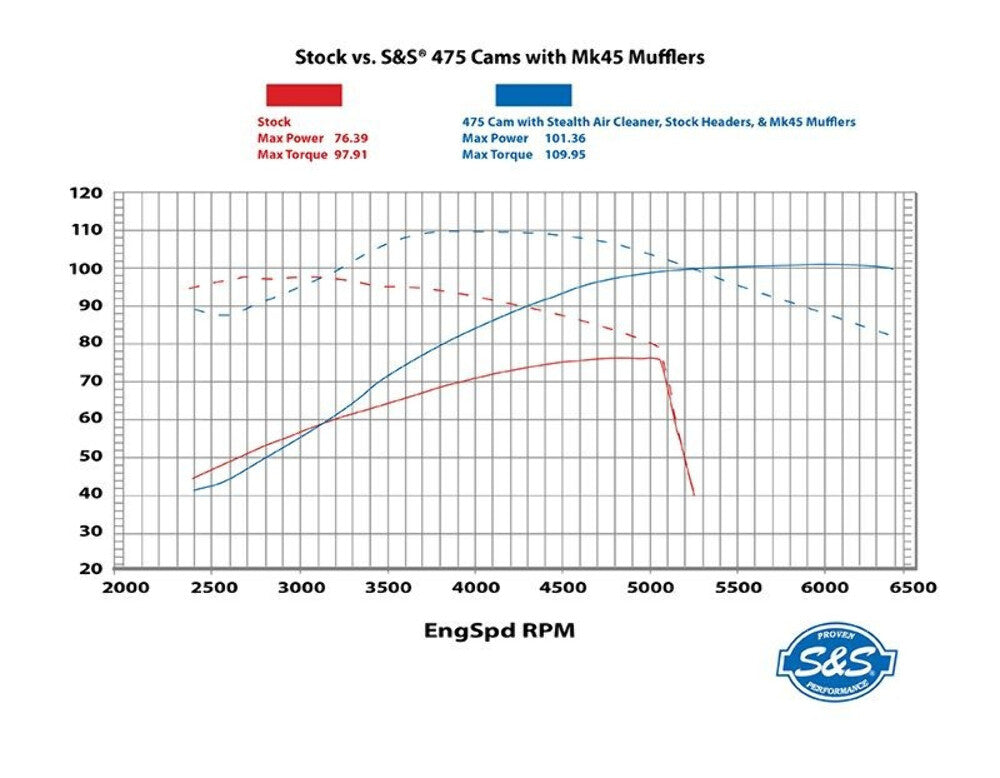

- The 475G is a 100 HP Bolt-in Cam (When coupled with intake and exhaust)
- Eliminates cam drive chain and tensioner

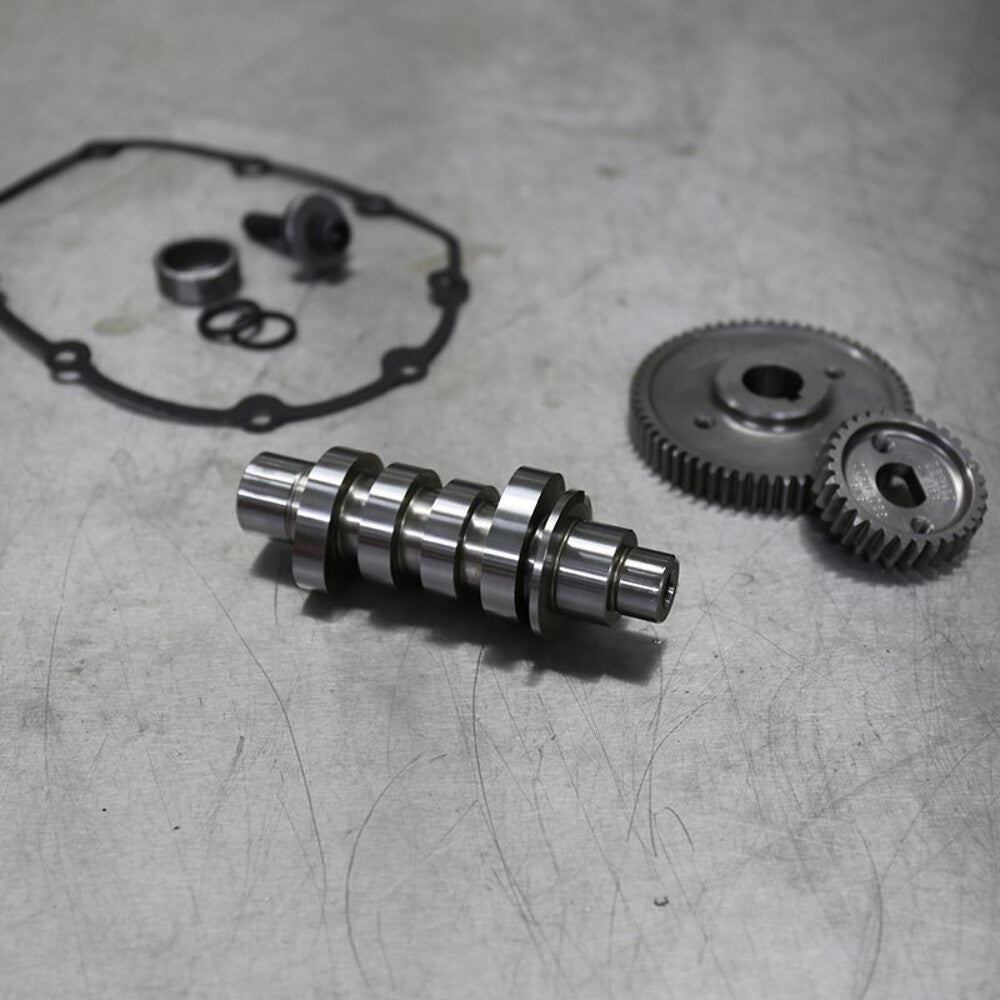

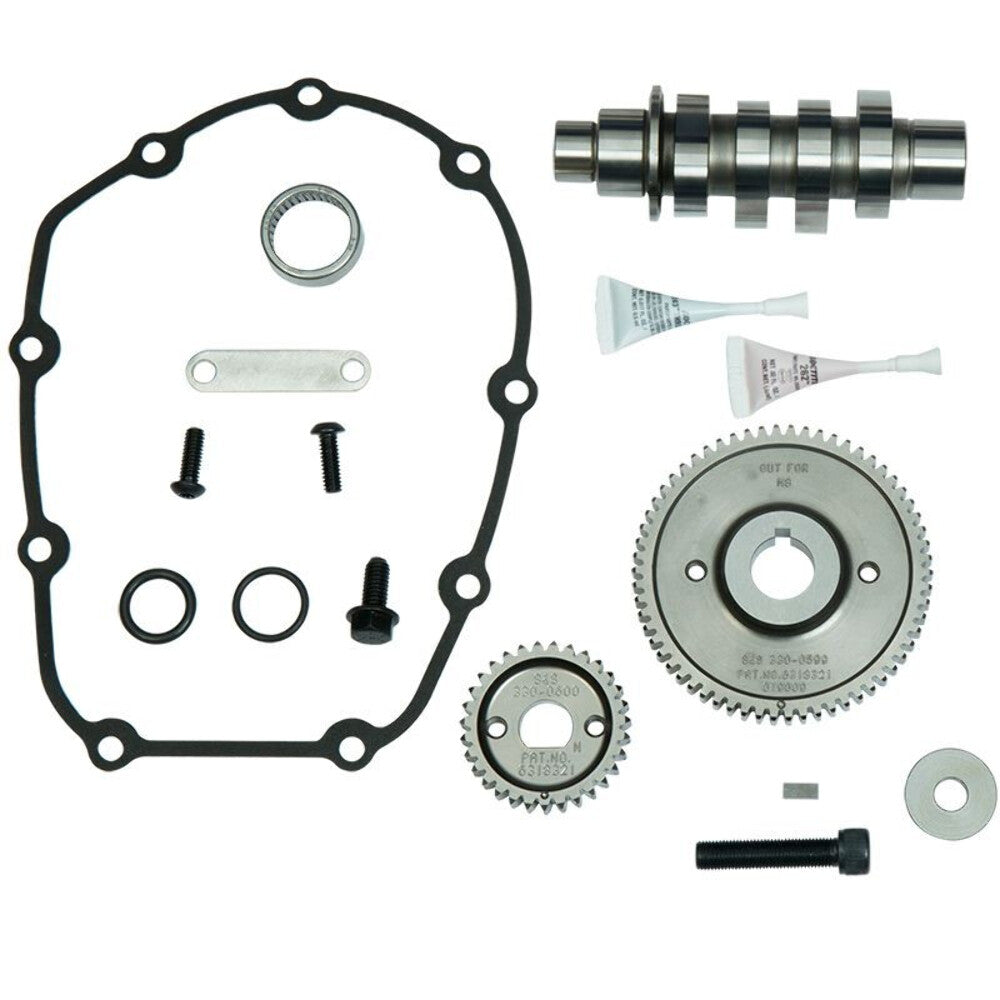

- Kits include all required bearings, o-rings, and hardware
- Gear drive cams provide improved valve timing accuracy
- Made in the USA
Suggested:
930-0123 Quickee Adjustable Pushrods with Cover Keepers for 2017-up M8 Models (Save labor and time! Eliminate the need to remove the rocker boxes and coolant lines)
330-0718 Precision Tappet Set Without HL2T Kit For 1999-'18 HD Big Twins, 2000-'19 HD® Sportster® and 2017-up M8 Models (Tappets should be replaced every time that the cam is replaced)

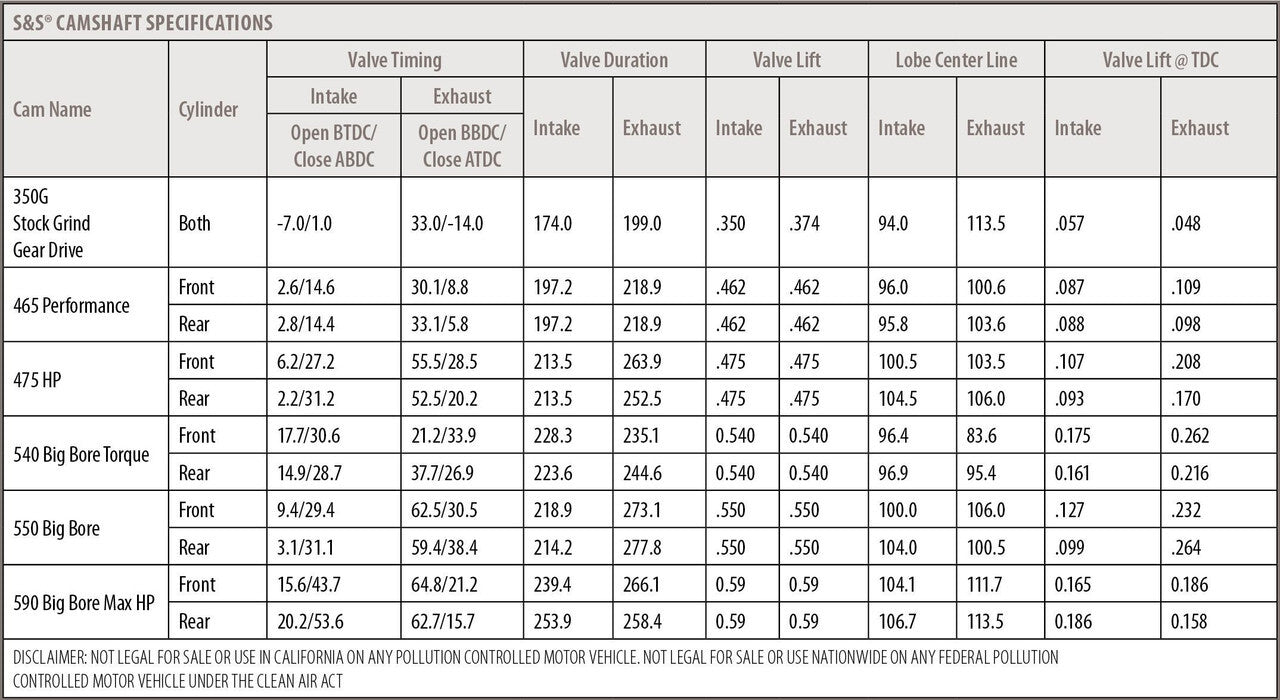

| Cylinder | Valve Timing | Valve Duration | Valve Lift | Lobe Center Line | Valve Lift @ TDC | |||||
| Intake | Exhaust | Intake | Exhaust | |||||||
| Open BTDC/ Close ATDC | Open BBDC/ Close ATDC | Intake | Exhaust | Intake | Exhaust | Intake | Exhaust | |||
| Front | 6.2/27.2 | 55.5/28.5 | 213.5 | 263.9 | .475 | .475 | 100.5 | 103.5 | .107 | .208 |
| Rear | 2.2/31.2 | 52.5/20.2 | 213.5 | 252.5 | .475 | .475 | 104.5 | 106.0 | .093 | .170 |
FITMENT DISCLAIMER
Fitment information is provided as a general reference only and is not guaranteed for any motorcycle, whether stock or modified. Compatibility may vary by year, model, and individual configuration.
Customers are responsible for verifying fitment prior to purchase. House of Harley-Davidson assumes no liability for purchases made based on incorrect or unverified fitment information.
Please TEXT 414-282-2211 with any questions before ordering, or use the chat below.
