Fat Baggers 802214-B

FBI Pointed Top Series with 1″ Clamp

Features:

• Wired for your handlebar controls, including a throttle-by-wire sensor installed
• Remove the bars from the box and plug them into your motorcycle
• No more need to fight internal wiring with our handlebars

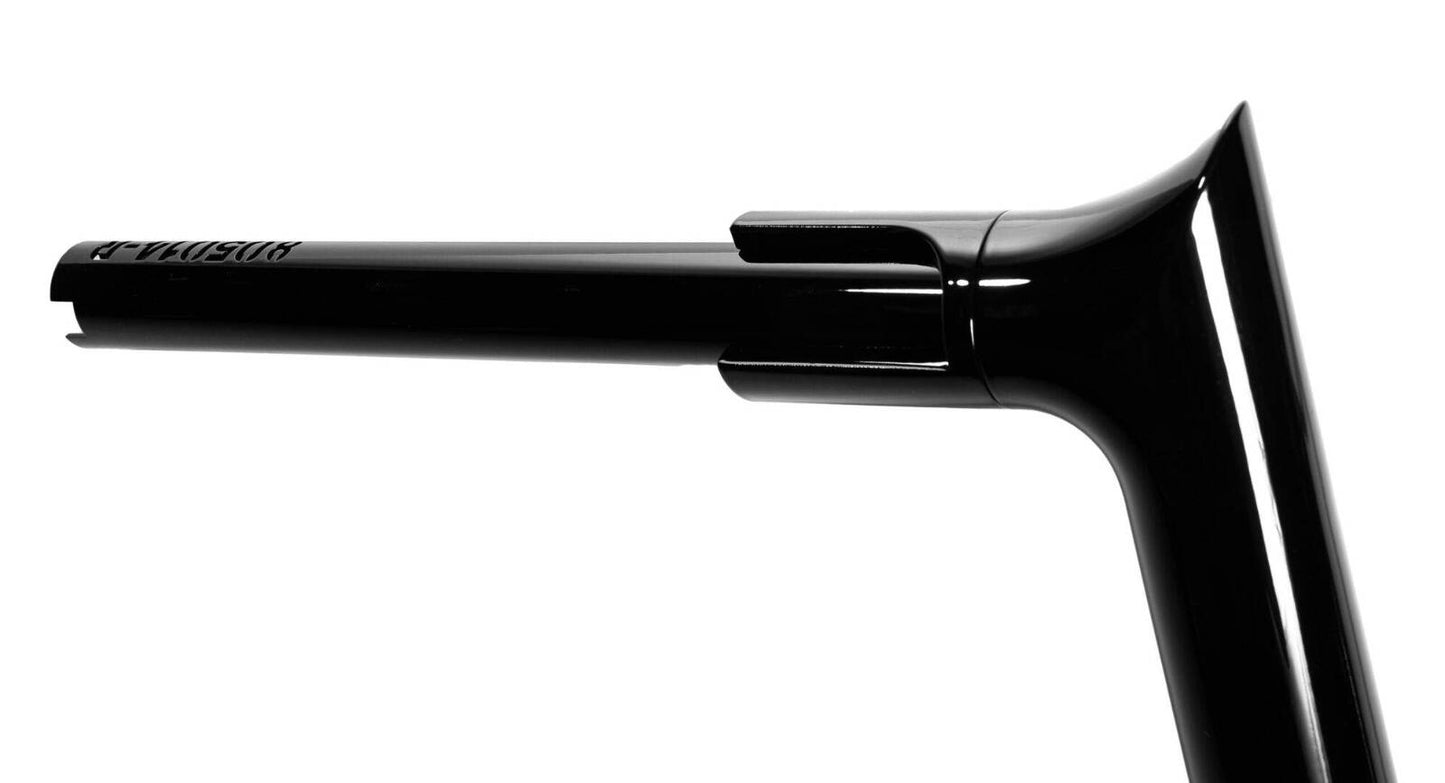

• Non welded top corner is machined from billet steel with a smooth internal wire cavity that won’t damage the internal wiring
• Adjustable 1-1/2″ collar next to handlebar controls for a custom finished look
• CNC mandrel bent from 1-1/2″ Dia. x .095″ wall heavy tube
• Bolt-together, 2-piece handlebar takes up half the shelf space
• Made in the U.S.A.
• Does not replace existing lines and cables, but extends them.
• Accepts OEM heated grips.
• Heated Grip Extension sold separately.

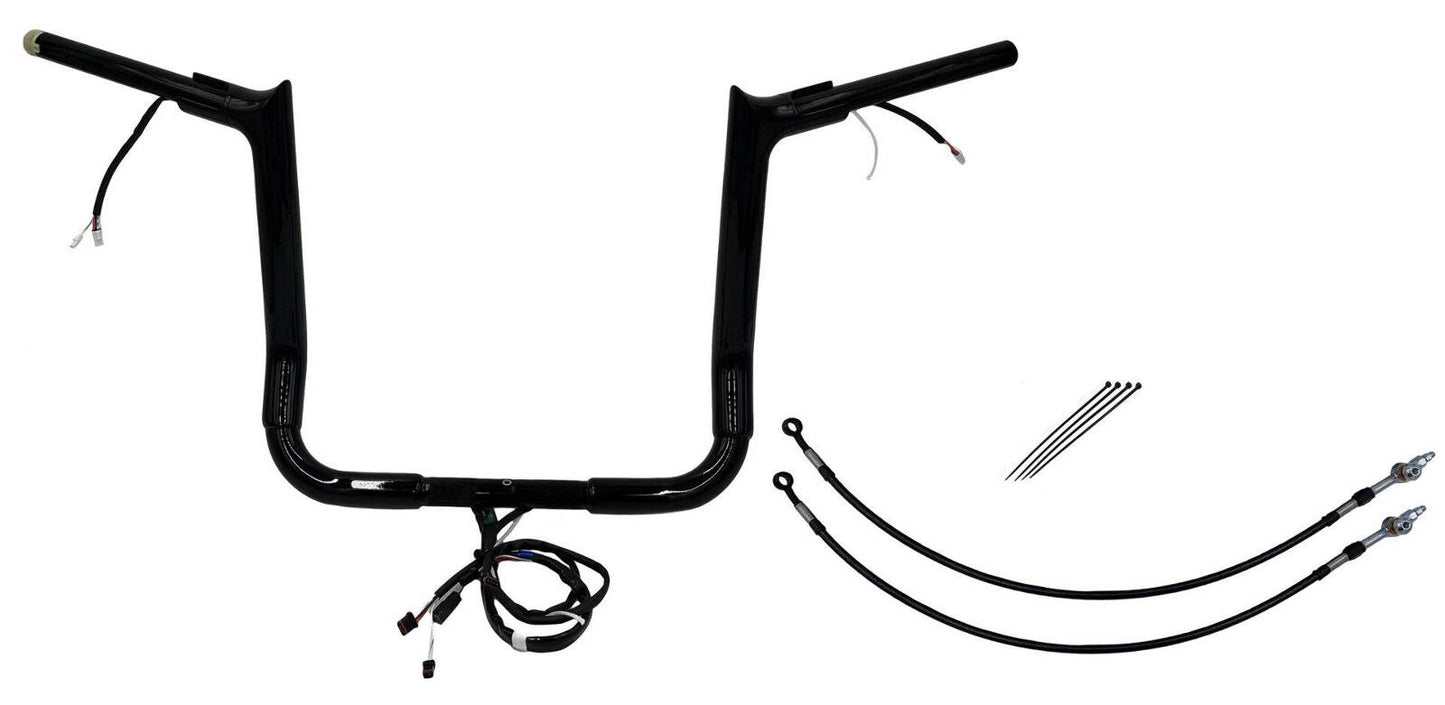

Items included in this kit:

• EZ Install Wired Handlebars 1-1/2″ Pointed Top 14″ Black
• These handlebars are pre-installed with a twist grip sensor, can bus wire harness for controls, and 1 pre-installed rope to accommodate heated grips.
• Black hydraulic clutch extension
• Black brake line extension
• Zip ties

Fitment:

• FOR 16-20 FLHT, FLHTC, FLHTCU, FLHTK, FLHX & FL TRIKE W/ABS & NON-ABS

Specs:

• Width: 36″
• Center Width: 15″
• Pullback: 9″
• 1″ Clamp

Part Notices:

• Heated grip extension sold separately
• Our handlebar kits do not replace existing lines and cables, we extend them.
• Black handlebars come with black lines/cable extensions; Chrome handlebars come with braided lines/cables extensions. Exception: ALL 2021/2022 Fitments will include black brake lines and black clutch extensions.

Drag Specialties Part # 0601-6178

U.S. Patent No. 10,946,926

Weight and Dimensions

FITMENT DISCLAIMER

Fitment information is provided as a general reference only and is not guaranteed for any motorcycle, whether stock or modified. Compatibility may vary by year, model, and individual configuration.

Customers are responsible for verifying fitment prior to purchase. House of Harley-Davidson assumes no liability for purchases made based on incorrect or unverified fitment information.

Please TEXT 414-282-2211 with any questions before ordering, or use the chat below.
