902214-B | EZ Install Wired Handlebars 1-1/4″ Pointed Top 14″ Black
Precio regular
$849.95
Envío calculado al finalizar la compra.
Recogida actualmente no disponible
Fat Baggers 902214-B
Description
FBI Pointed Top Series with 1″ Clamp
Features:
- Wired for your handlebar controls, including a throttle-by-wire sensor installed
- Remove the bars from the box and plug them into your motorcycle
- No more need to fight internal wiring with our handlebars
- Non welded top corner is machined from billet steel with a smooth internal wire cavity that won’t damage the internal wiring
- CNC mandrel bent from 1-1/4″ Dia. x .120″ wall heavy tube
- Bolt-together, 2-piece handlebar takes up half the shelf space
- Made in the U.S.A.
- Does not replace existing lines and cables, but extends them.
- Accepts OEM heated grips.
- Heated Grip Extension sold separately.
- All ’21-’23 kits will include black brake lines and black clutch extensions.

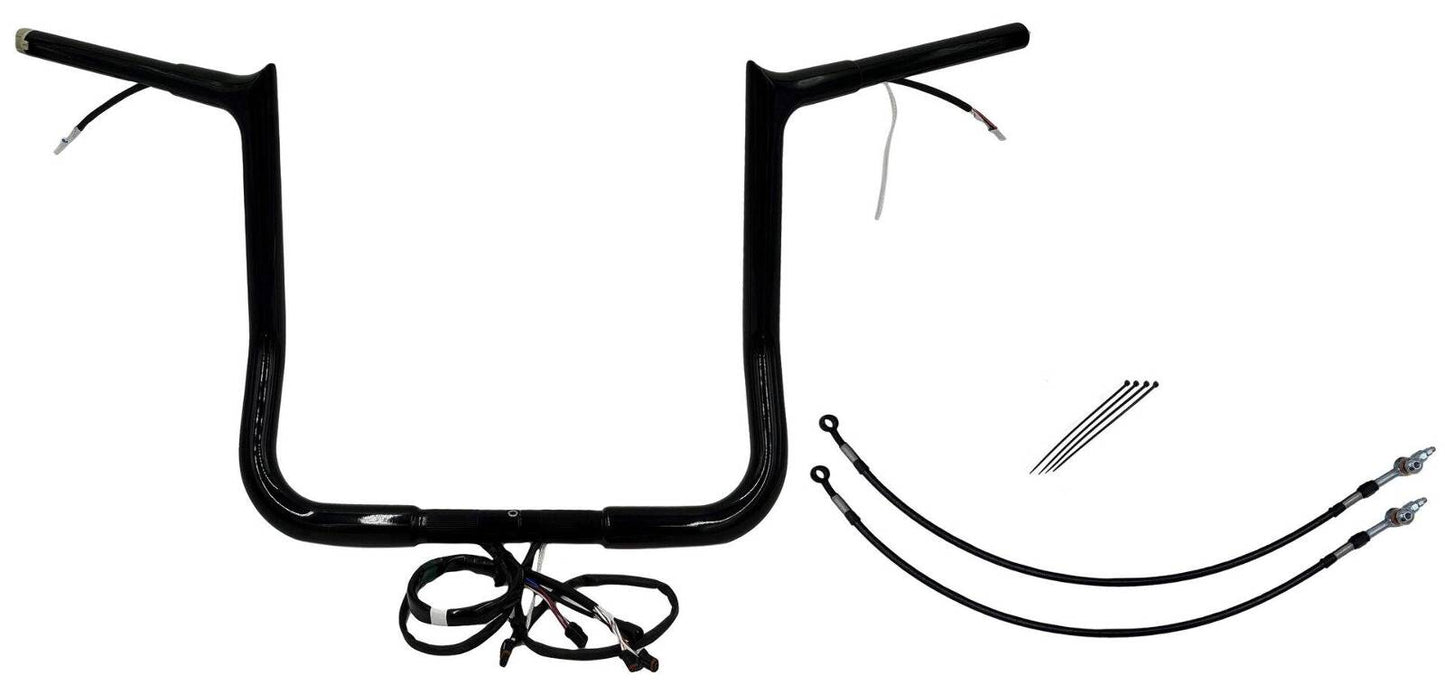

Items included in this kit:
- EZ Install Wired Handlebars 1-1/4″ Pointed Top 14″ Black
- These handlebars are pre-installed with a twist grip sensor, can bus wire harness for controls, and 1 pre-installed rope to accommodate heated grips.
- Black hydraulic clutch extension
- Black brake line extension
- Zip ties
Fitment:
- FOR 16-20 FLHT, FLHTC, FLHTCU, FLHTK, FLHX & FL TRIKE W/ABS & NON-ABS
Specs:
- Width: 36″
- Center Width: 15 1/2″
- Pullback: 9″
- 1” Clamp
Part Notices:
- Heated grip extension sold separately
- Our handlebar kits do not replace existing lines and cables, we extend them.
- Black handlebars come with black lines/cable extensions; Chrome handlebars come with braided lines/cables extensions. Exception: ALL 2021/2022 Fitments will include black brake lines and black clutch extensions.
Drag Specialties Part # 0601-6143
U.S. Patent No. 10,946,92
Fitment
| Year | Make | Model | |
|---|---|---|---|
| 2016 2017 2018 2019 2020 | 2016-2020 | Harley Davidson | CVO Electra Glide Ultra Limited FLHTKSE |
| 2016 2017 2018 2019 2020 | 2016-2020 | Harley Davidson | CVO Street Glide FLHXSE |
| 2016 2017 2018 2019 2020 | 2016-2020 | Harley Davidson | Electra Glide Police FLHTP |
| 2016 2017 2018 2019 2020 | 2016-2020 | Harley Davidson | Electra Glide Police FLHTPI |
| 2016 2017 2018 2019 | 2016-2019 | Harley Davidson | Electra Glide Ultra Classic EFI FLHTCUI |
| 2016 2017 2018 2019 | 2016-2019 | Harley Davidson | Electra Glide Ultra Classic FLHTCU |
| 2016 2017 2018 2019 2020 | 2016-2020 | Harley Davidson | Electra Glide Ultra Limited FLHTK |
| 2016 2017 2018 2019 2020 | 2016-2020 | Harley Davidson | Street Glide FLHX |
| 2016 2017 2018 2019 2020 | 2016-2020 | Harley Davidson | Street Glide Special FLHXS |
| 2016 2017 2018 2019 2020 | 2016-2020 | Harley Davidson | Tri Glide Ultra Classic FLHTCUTG |
| 2016 | 2016 | Harley Davidson | Ultra Classic Electra Glide Low FLHTCUL |
| 2016 2017 2018 2019 | 2016-2019 | Harley Davidson | Ultra Limited Low FLHTKL |
| 2018 | 2018 | Harley Davidson | Street Glide 115th Anniversary FLHXANV |
| 2018 | 2018 | Harley Davidson | Street Glide Special 115TH Anniversary FLHXSANV |
| 2018 | 2018 | Harley Davidson | Tri Glide Ultra 115TH Anniversary FLHTCUTGANV |
| 2018 | 2018 | Harley Davidson | Ultra Limited 115th Anniversary FLHTKANV |
| 2019 2020 | 2019-2020 | Harley Davidson | Electra Glide Standard EFI FLHTI |
| 2019 2020 | 2019-2020 | Harley Davidson | Electra Glide Standard FLHT |
| 2020 | 2020 | Harley Davidson | CVO Tri Glide FLHTCUTGSE |
Weight and Dimensions
| Weight | 8.716 lbs |
|---|---|
| Dimensions | 21 × 12 × 5 in |
FITMENT DISCLAIMER
Fitment information is provided as a general reference only and is not guaranteed for any motorcycle, whether stock or modified. Compatibility may vary by year, model, and individual configuration.
Customers are responsible for verifying fitment prior to purchase. House of Harley-Davidson assumes no liability for purchases made based on incorrect or unverified fitment information.
Please TEXT 414-282-2211 with any questions before ordering, or use the chat below.
