330-0641 | 475C Chain Drive Camshaft Kit for 2017-Up M8 Models

$299.95
Envío calculado al finalizar la compra.

Recogida actualmente no disponible

S&S Cycle 330-0641

Features & Benefits

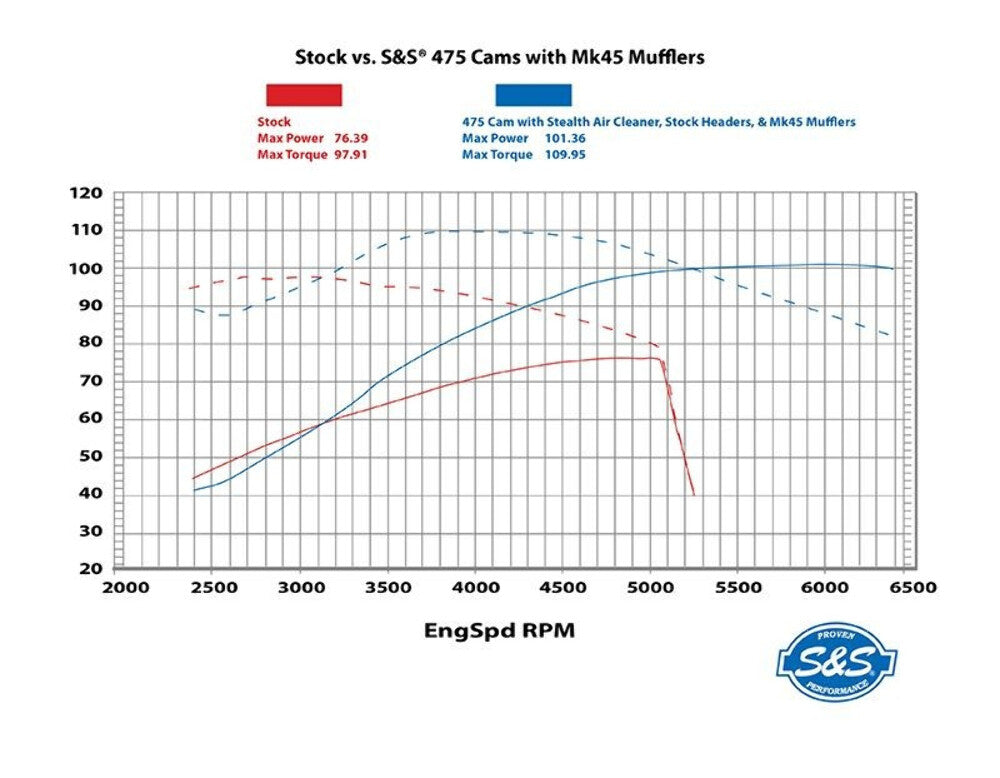

  • The 475C is a 100 HP Bolt-in Cam (When coupled with intake and exhaust)
  • Bolt-in! Compatible with all stock valve train components

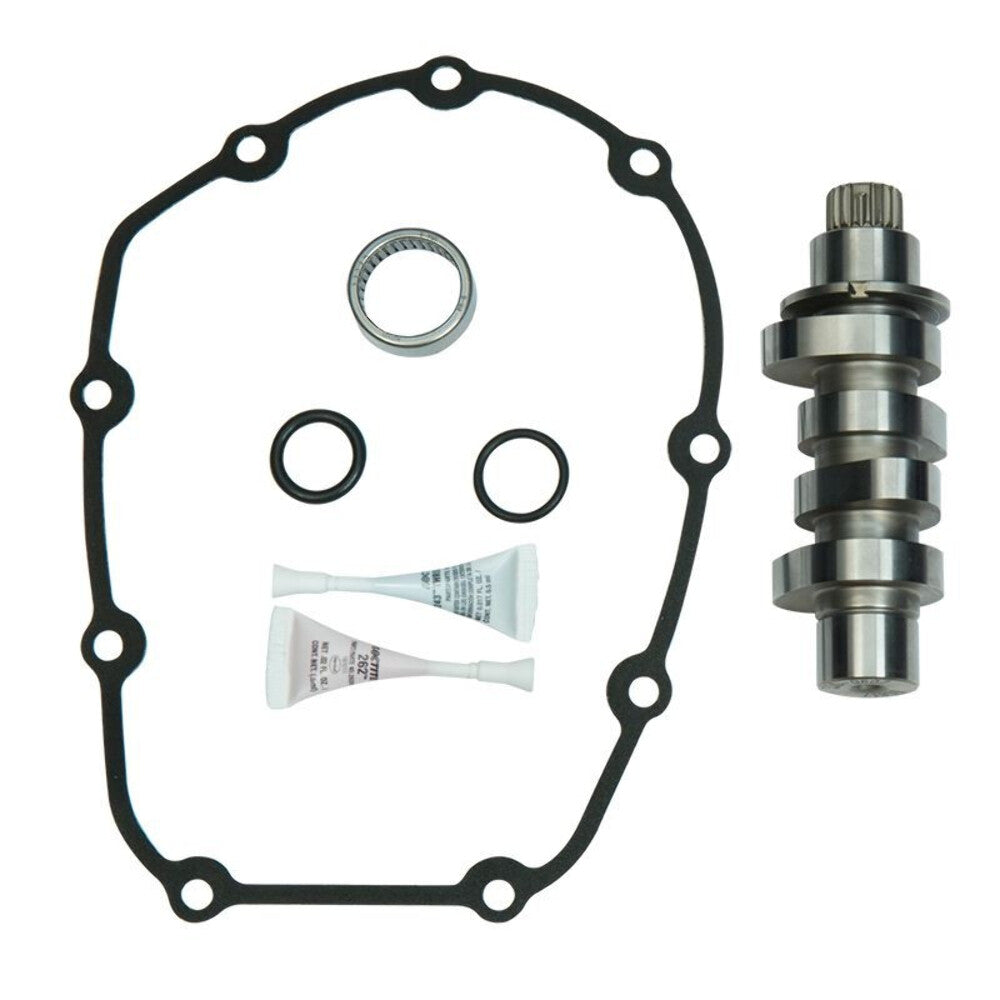

  • Kits include all required bearings, o-rings, and hardware
  • Made in the USA



Suggested:
930-0123 Quickee Adjustable Pushrods with Cover Keepers for 2017-19 M8 Models (Save labor and time! Eliminate the need to remove the rocker boxes and coolant lines)
330-0718 Precision Tappets for 2017-19 M8 1999-17 big twins and 2000-19 XL Models (Tappets should be replaced every time that the cam is replaced)

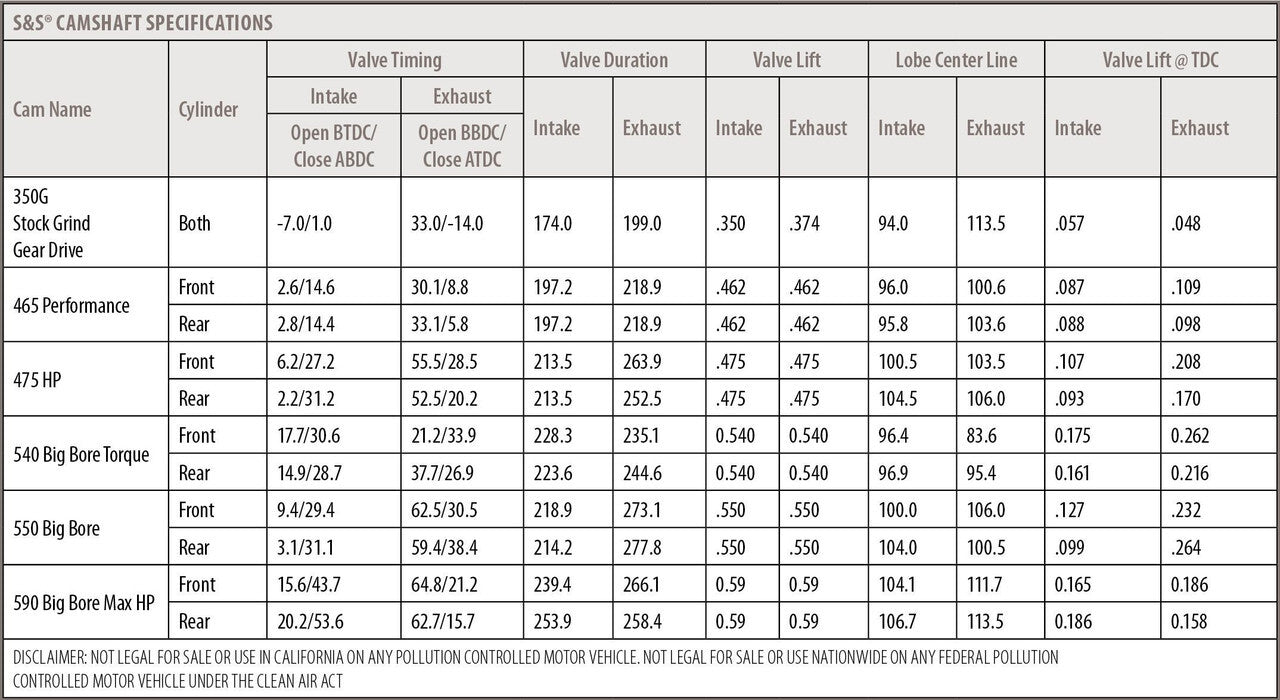

Cylinder Valve Timing Valve Duration Valve Lift Lobe Center Line Valve Lift @ TDC
Intake Exhaust Intake Exhaust
Open BTDC/ Close ATDC Open BBDC/ Close ATDC Intake Exhaust Intake Exhaust Intake Exhaust
Front 6.2/27.2 55.5/28.5 213.5 263.9 .475 .475 100.5 103.5 .107 .208
Rear 2.2/31.2 52.5/20.2 213.5 252.5 .475 .475 104.5 106.0 .093 .170
Install Instructions Download

FITMENT DISCLAIMER

Fitment information is provided as a general reference only and is not guaranteed for any motorcycle, whether stock or modified. Compatibility may vary by year, model, and individual configuration.

Customers are responsible for verifying fitment prior to purchase. House of Harley-Davidson assumes no liability for purchases made based on incorrect or unverified fitment information.

Please TEXT 414-282-2211 with any questions before ordering, or use the chat below.
